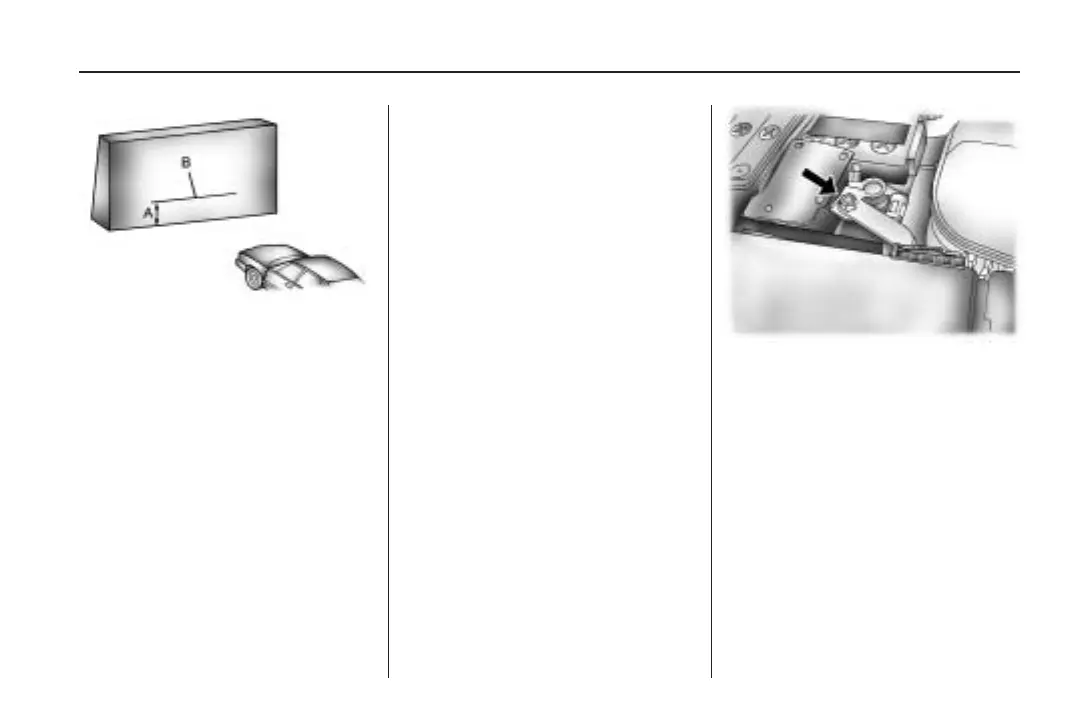

4. At a wall, measure from the
ground upward (A) to the
recorded distance from Step 3
and mark it.
5. Draw or tape a horizontal line (B)
on the wall the width of the
vehicle at the height of the mark
in Step 4.
Notice: Do not cover a headlamp
to improve beam cut-off when
aiming. Covering a headlamp may
cause excessive heat build-up
which may cause damage to the
headlamp.
6. Turn on the low-beam headlamps
and place a piece of cardboard
or equivalent in front of the
headlamp not being adjusted.
Do not place it directly on
the headlamp. This allows only
the beam of light from the
headlamp being adjusted to be
seen on the flat surface.
7. Locate the vertical headlamp
aiming screws, which are
under the hood near each
headlamp assembly.
The adjustment screw can be
turned with a 6 mm socket
wrench.
8. Turn the vertical aiming screw
until the headlamp beam is
aimed to the horizontal
tape line. Turn it clockwise or
counterclockwise to raise
or lower the angle of the beam.
Vehicle Service and Care 9-27
