Taillamps
(Three-Door Hatchback)

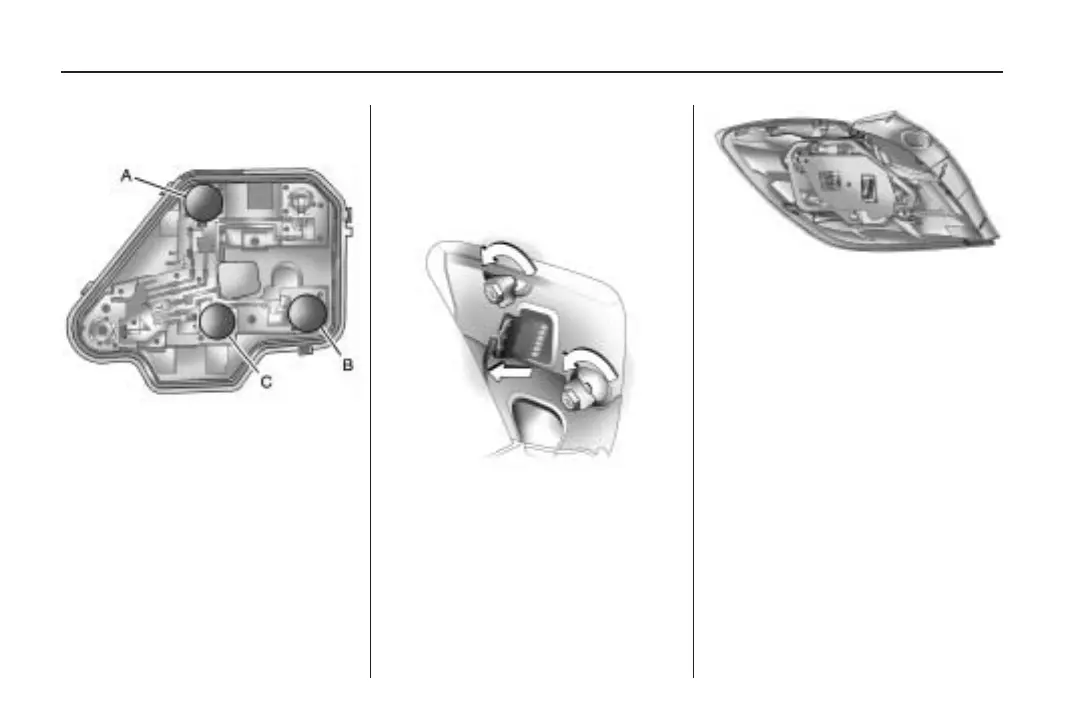

A. Backup Lamp
B. Taillamp
C. Taillamp/Stoplamp/Turn
Signal Lamp
To replace one of these bulbs:
1. Open the liftgate. See Liftgate on
page 2-6 for more information.
2. Detach the plug connector from
the bulb assembly.
3. Turn the nuts counterclockwise
and hold the outside of taillamp
assembly.
4. Pull the taillamp assembly
straight out.
5. Remove the seal.
6. Press on the tabs on outside of
bulb assembly and remove the
bulb assembly.
7. Remove the bulb from the bulb
assembly.
8. Install a new bulb without
touching the glass.
9. Reinstall the bulb assembly in
taillamp assembly.
10. Make sure the seals are applied
to the taillamp assembly and
screws.
11. Insert the taillamp assembly
into the body.
12. Reinstall the three nuts.
13. Attach the plug connector to the
bulb assembly.
