6
158085
TOP (C)
SHELF (D)
BOTTOM (E)
LEFT
END (B)

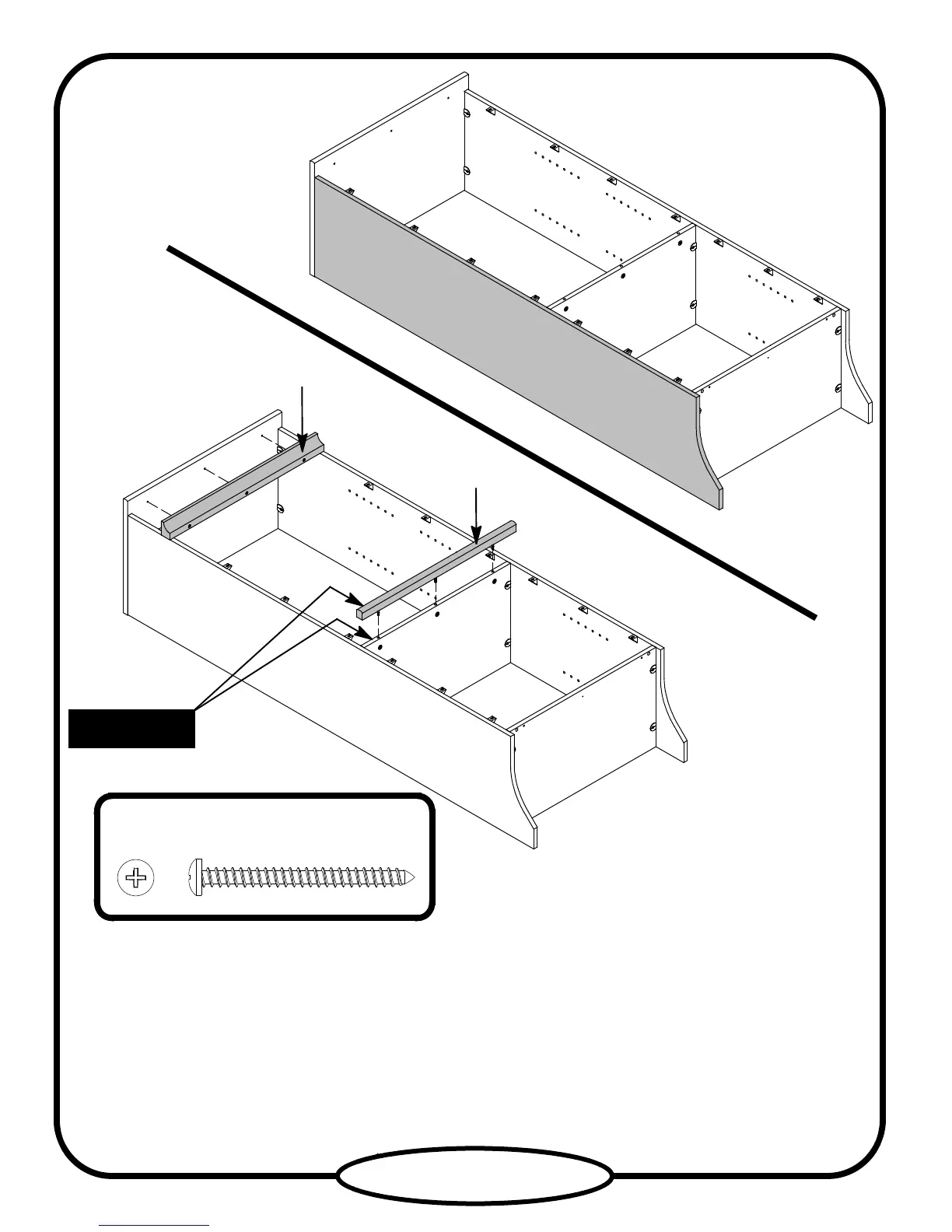

- Fasten the LEFT END (B) to the TOP ( C), SHELF (D), and BOTTOM (E). Tighten the TWIST-LOCK
R
FASTENERS in the LEFT END, SHELF, and BOTTOM.
- Fasten the TOP MOLDING (J) to the TOP (C) as shown. Use three BLACK 1--7/8” PAN HEAD SCREWS through
the TOP MOLDING and into the pre--drilled holes in the TOP.
- Lock the SHELF MOLDING (K) to the SHELF (D). With the CAM SCREWS inserted into the HIDDEN CAMS,
turn the HIDDEN CAMS about 1/2 turn clockwise with your screwdriver.
NOTE: Be sure the indicated surfaces are even.
NOTE: If the CAM SCREWS will not insert completely into the holes, be sure the arrows in the top of
the HIDDEN CAMS are facing toward the CAM SCREWS.
www.sauder.com/services
BLACK 1--7/8” PAN HEAD SCREW
(3 used in this step)
TOP
MOLDING (J)
SHELF
MOLDING (K)
TOP (C)
SHELF (D)
These surfaces
should be even.
To Next Page
