Sauder 158085 - Page 26

7
158085
www.sauder.com/services
BLACK 9/16” LARGE HEAD SCREW
(16usedinthisstep)
TOP (C)
RIGHT
END (A)
LEFT
END (B)
LONG END
MOLDING (H)
LONG END
MOLDING (H)
VALANCE (M)
VALANCE (M)
TIE
PLATE (U)

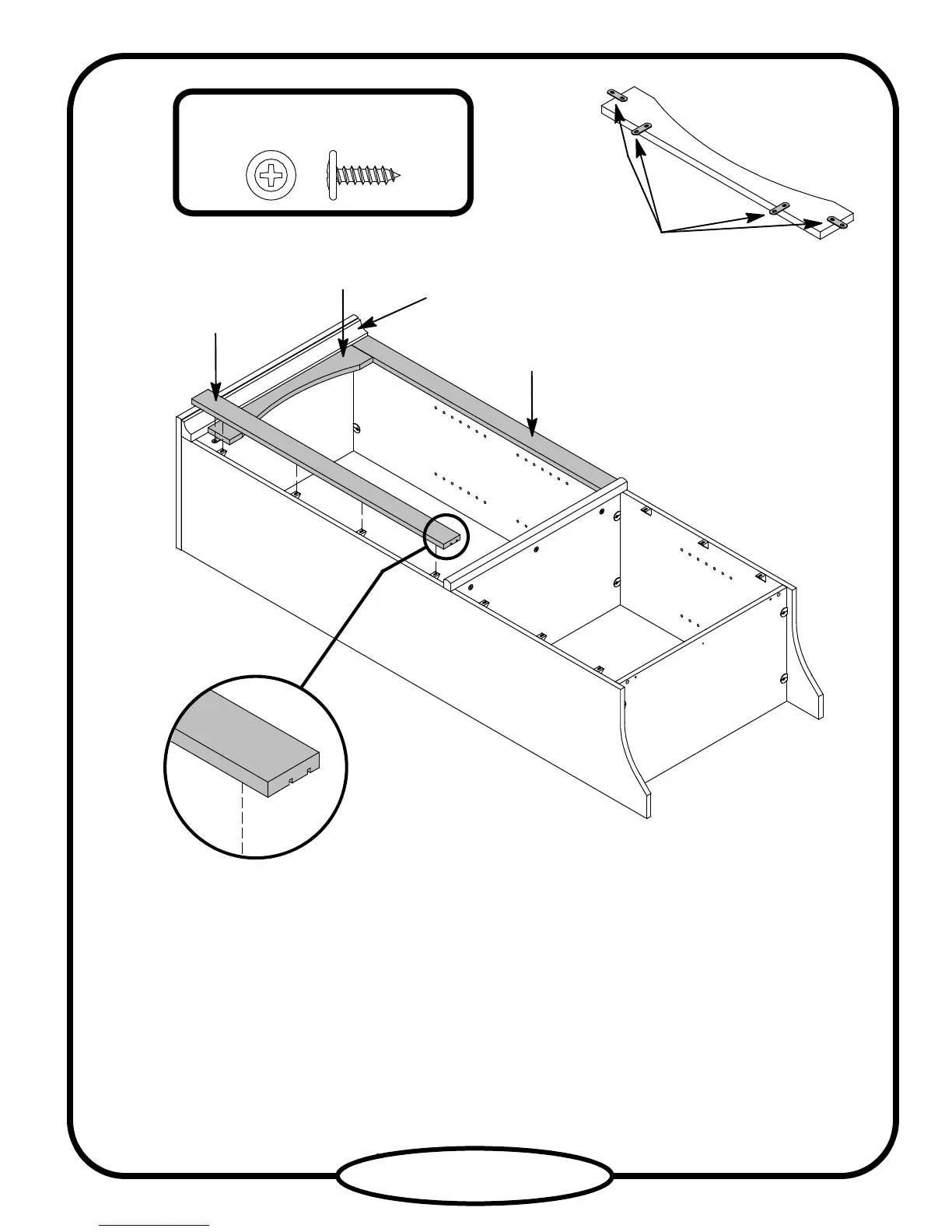

- Fasten four TIE PLATES (U) to the VALANCE (M) as shown in the upper diagram. Use a BLACK 9/16” LARGE
HEAD SCREW through each TIE PLATE and into the pre--drilled holes in the VALANCE.
NOTE: Be sure the TIE PLATES are positioned as shown. Follow the diagram closely.
- Fasten the VALANCE (M) to the TOP MOLDING (J) as shown. Use a BLACK 9/16” LARGE HEAD SCREW
through each TIE PLATE and into the pre--drilled holes in the TOP MOLDING.
- Fasten the LONG END MOLDINGS (H) to the ENDS and VALANCE (M) as shown. Use a BLACK 9/16” LARGE
HEAD SCREW through the eight ANGLE BRACKETS and two TIE PLATES and into groove in the
END MOLDINGS.
NOTE: Be sure the grooves in the END MOLDINGS are positioned as shown. Follow the enlarged
diagram closely.
TOP
MOLDING (J)
