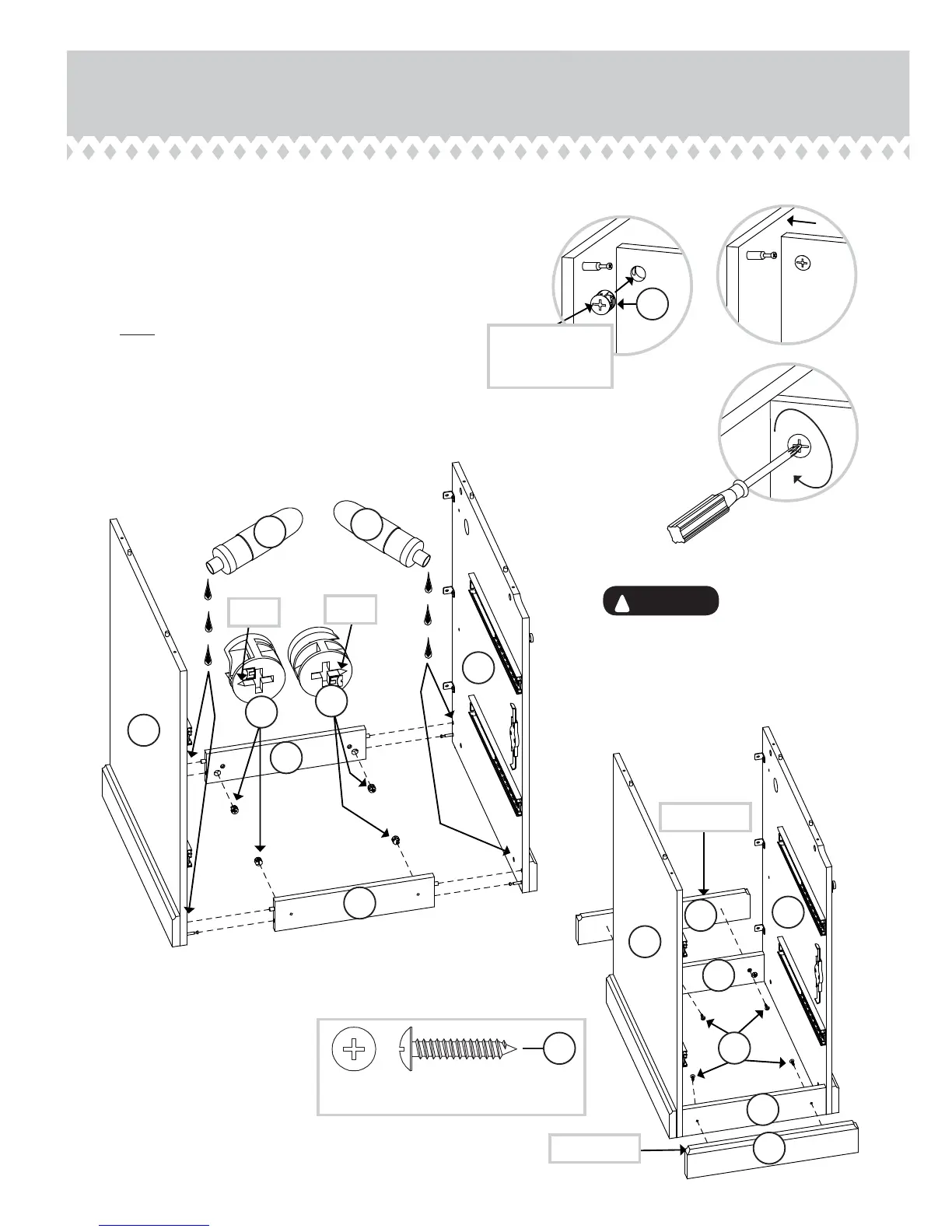

Sauder 402159 - Step 7: Securing Braces and Bases

å
Insert four CAMS (P1) into two BRACES (L).
å
Fill the holes in the LEFT END (C) and LEFT UPRIGHT (D)
a 1/4 to 1/2 full with GLUE (G1) as shown.
å
Fasten the BRACES (L) to the LEFT END (C) and LEFT
UPRIGHT (D). Tighten two CAMS (P1).
å
NOTE: Be sure the DOWELS in the ends of the BRACES
insert into the END and UPRIGHT. Wipe away the excess glue.
å
Fasten two BASES (G) to the BRACES (L). Use four
BLACK 1" PAN HEAD SCREWS (S3).
Step 7
C
C
D
D
L
L
L
L
G
G
P1
P1
Arrow
Arrow
S3
Curved edge
Curved edge
