Sauder 419119 - Page 13

å

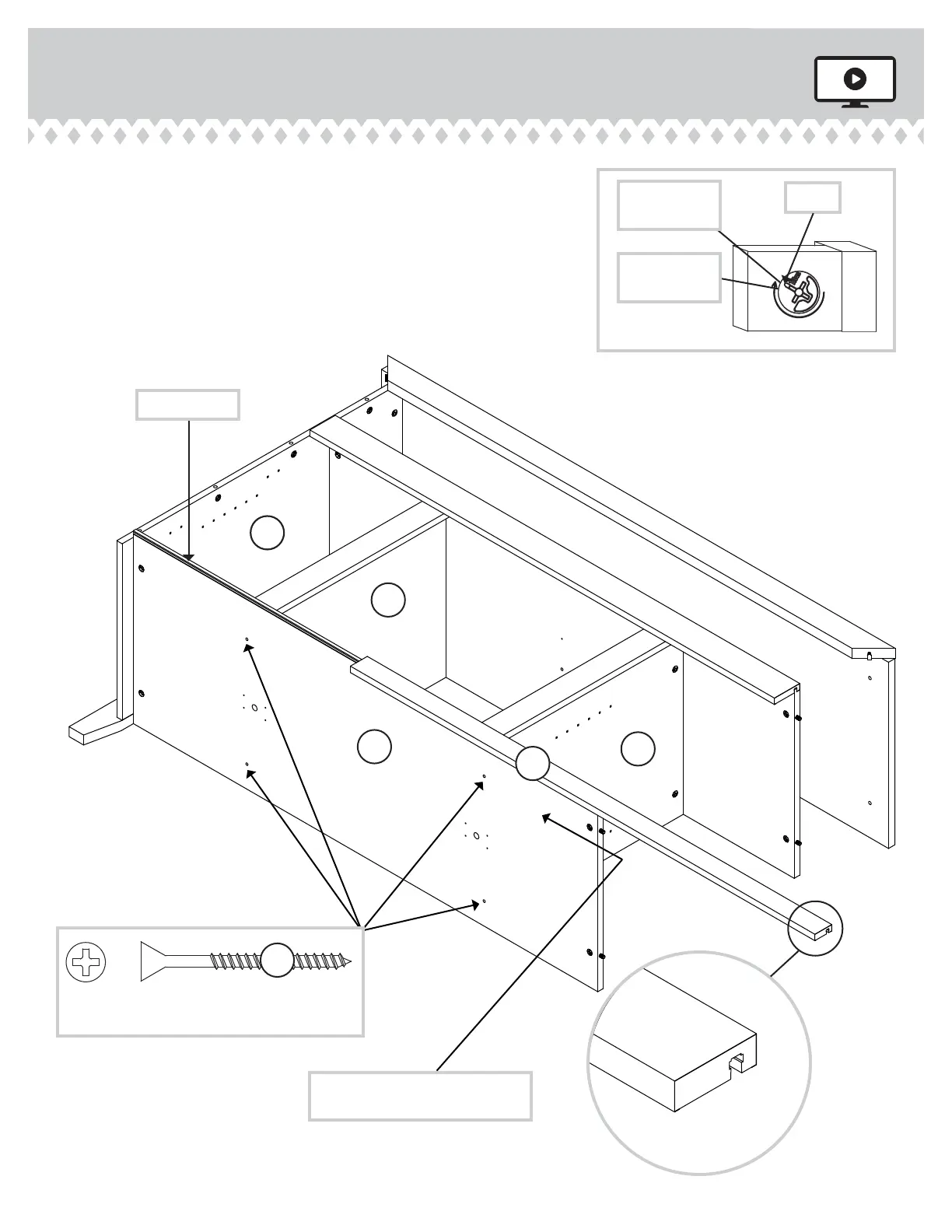

Fasten the BOTTOM (G) to the LEFT END (B). Tighten two
HIDDEN CAMS.
å
Fasten the BOTTOM (G) to the UPRIGHTS (C and D). Use
four BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å
Slide the BOTTOM MOLDING* (S) onto the notched edge
of the BOTTOM (G).
å
*U.S. Patent No. 5,499,886
Step 9
419119www.sauder.com/services
Page 13
Arrow
Minimum
190 degrees
Maximum
210 degrees
D
C
G
Notched edge
Surface with
HIDDEN CAMS
Slide the BOTTOM MOLDING (S)
onto the notched edge.
B
S
BLACK 1-7/8" FLAT HEAD SCREW
(4 used in this step)
2S
