Step 19
419119www.sauder.com/services
Page 23
å

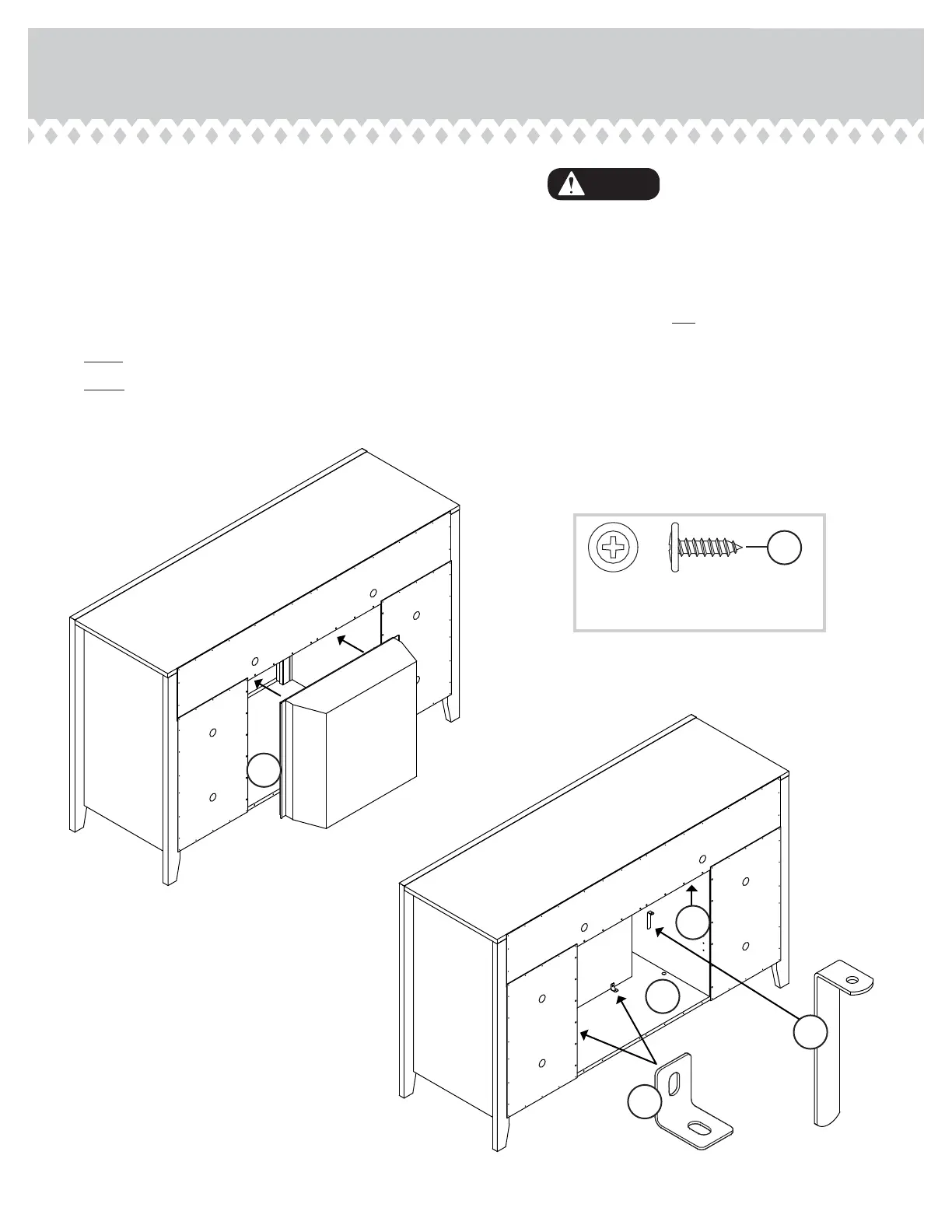

Place the corrugated packing material below the 418738
FIREPLACE to preserve the top surface of the BOTTOM (G).
Carefully place the FIREPLACE in the opening from the back of
the unit. Pull the corrugated packing out from underneath
the FIREPLACE.
å
Fasten two METAL BRACKETS (4G) to the BOTTOM (G) and a
BRACKET (60G) to the SHELF (H).
Use three BLACK 9/16" LARGE
HEAD SCREWS (1S).
å
NOTE: The BRACKETS (4G and 60G) do not fasten to the FIREPLACE.
å
NOTE: If you did not purchase the 418738 FIREPLACE at this
time but may do so in the future, please keep the hardware used
in this step.
Please read all FIREPLACE instructions prior to
installing or removing it from your unit.
Do not plug the FIREPLACE into the power
supply until it is installed and your unit is in its
fi nal position. Do not move the FIREPLACE
while it is plugged into a power supply. Unplug it
before moving it.
When installing or removing the FIREPLACE,
move it in or out from the back, to keep from
scratching the top surface of the bottom.
Caution
BLACK 9/16" LARGE HEAD SCREW
(3 used in this step)
1S
G
H
418738
4G
60G
G
