Carefully turn your unit over onto its front edges.
å

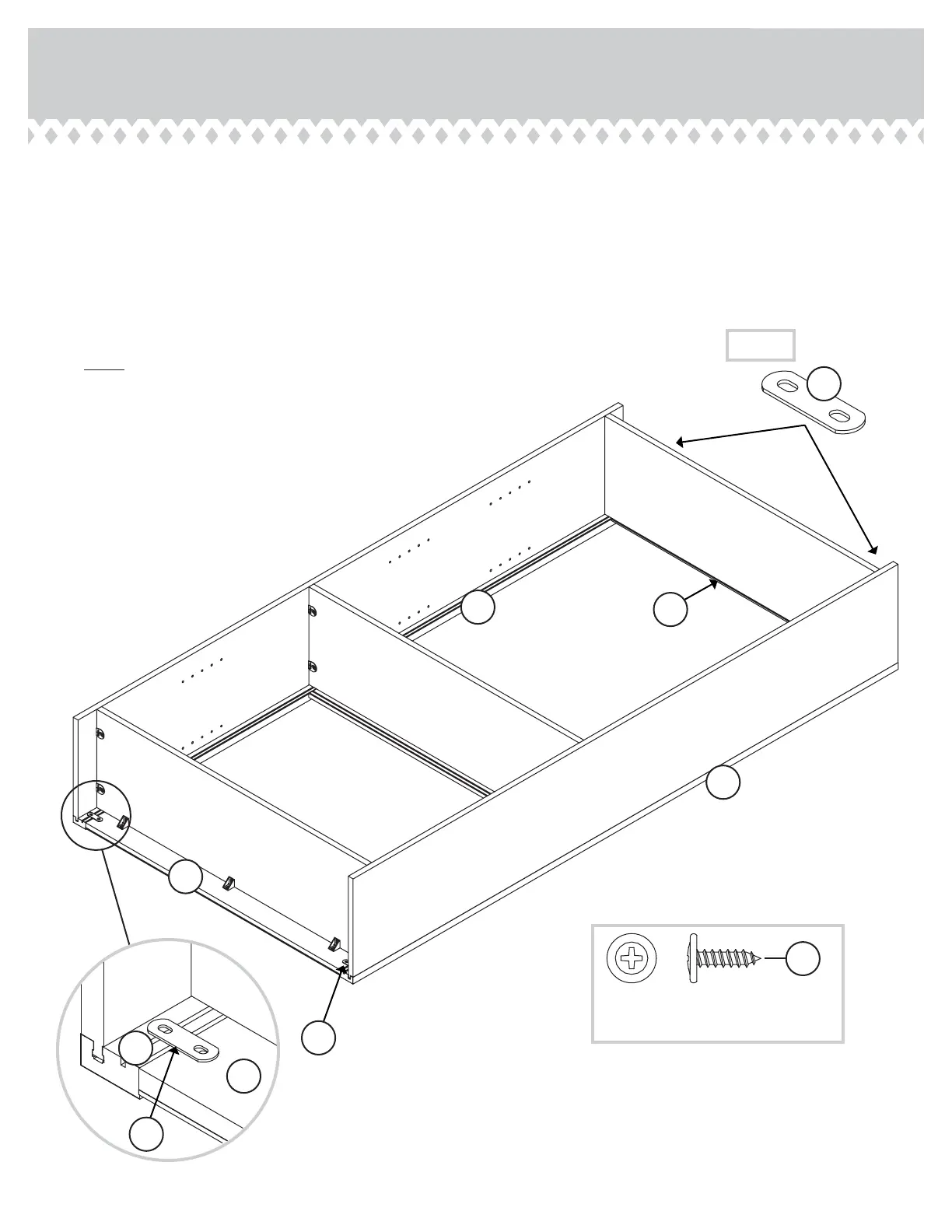

Fasten two TIE PLATES (3G) to the END MOLDINGS (H)
and the BASE (G). Use four BLACK 9/16” LARGE HEAD
SCREWS (1S).
å
Fasten two TIE PLATES (3G) to the END MOLDINGS (H)
and the TOP MOLDING (I). Use four BLACK 9/16” LARGE
HEAD SCREWS (1S).
å
NOTE: There are no pre-drilled holes in the END
MOLDINGS. The SCREWS will tighten into the grooves.
Step 7
419200www.sauder.com/services
Page 11
G
G
H
3G
3G
H
H
I
3G
(4 used)
BLACK 9/16" LARGE HEAD SCREW
(8 used in this step)
1S
To Next Page
