Step 4
å

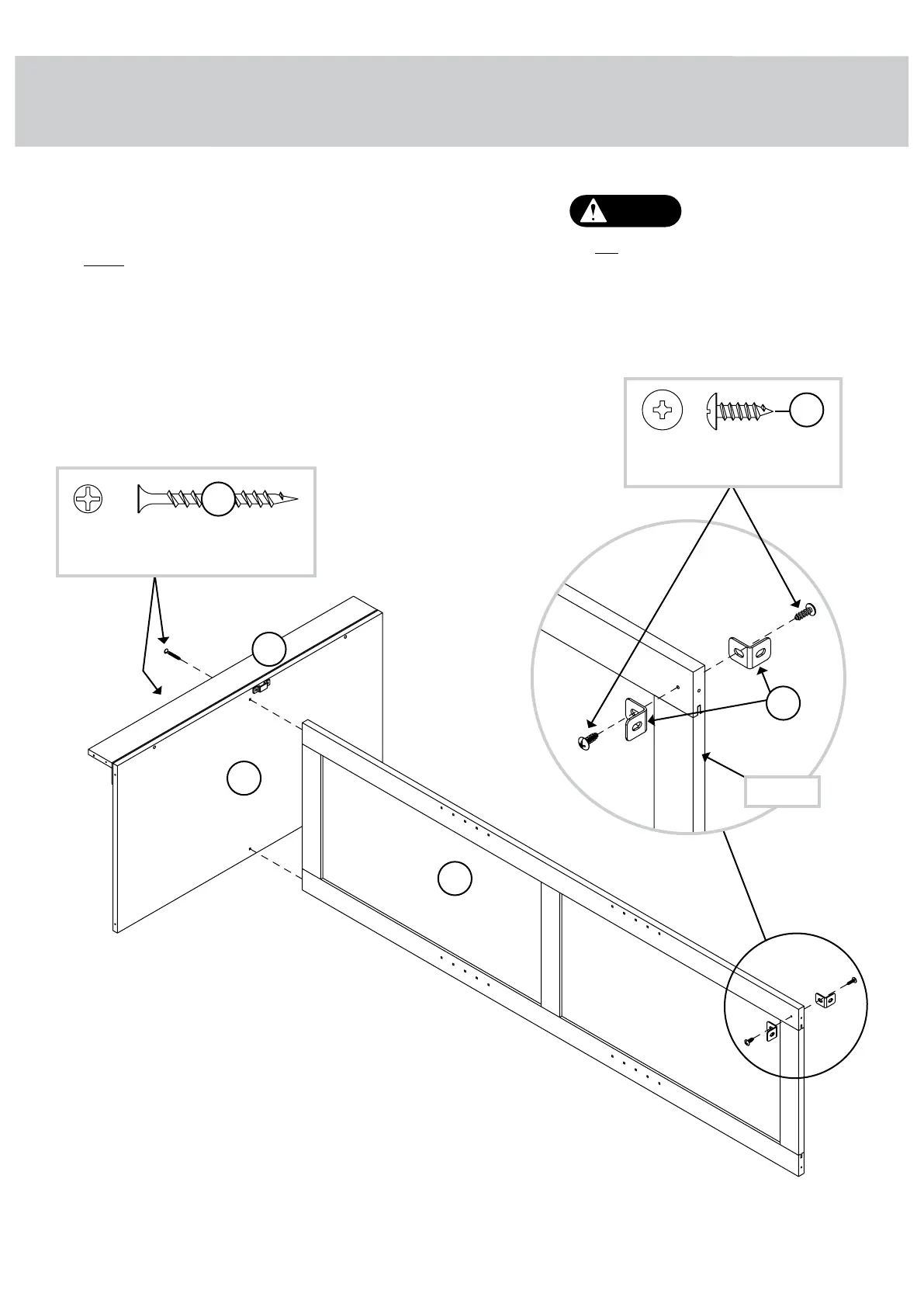

Fasten two METAL BRACKETS (8) to the UPRIGHT (C).
Use two 1/2" PAN HEAD SCREWS (18).
å
NOTE: Be sure the edges of the METAL BRACKETS are
even with the top edge of the UPRIGHT.
å
Fasten the BOTTOM (E) to the UPRIGHT (C). Use two
1-3/8" FLAT HEAD SCREWS (13).
E
L
C
8
1/2" PAN HEAD SCREW
(2 used in this step)
18
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Top edge
1-3/8" FLAT HEAD SCREW
(2 used in this step)
13
