Step 17
17
å

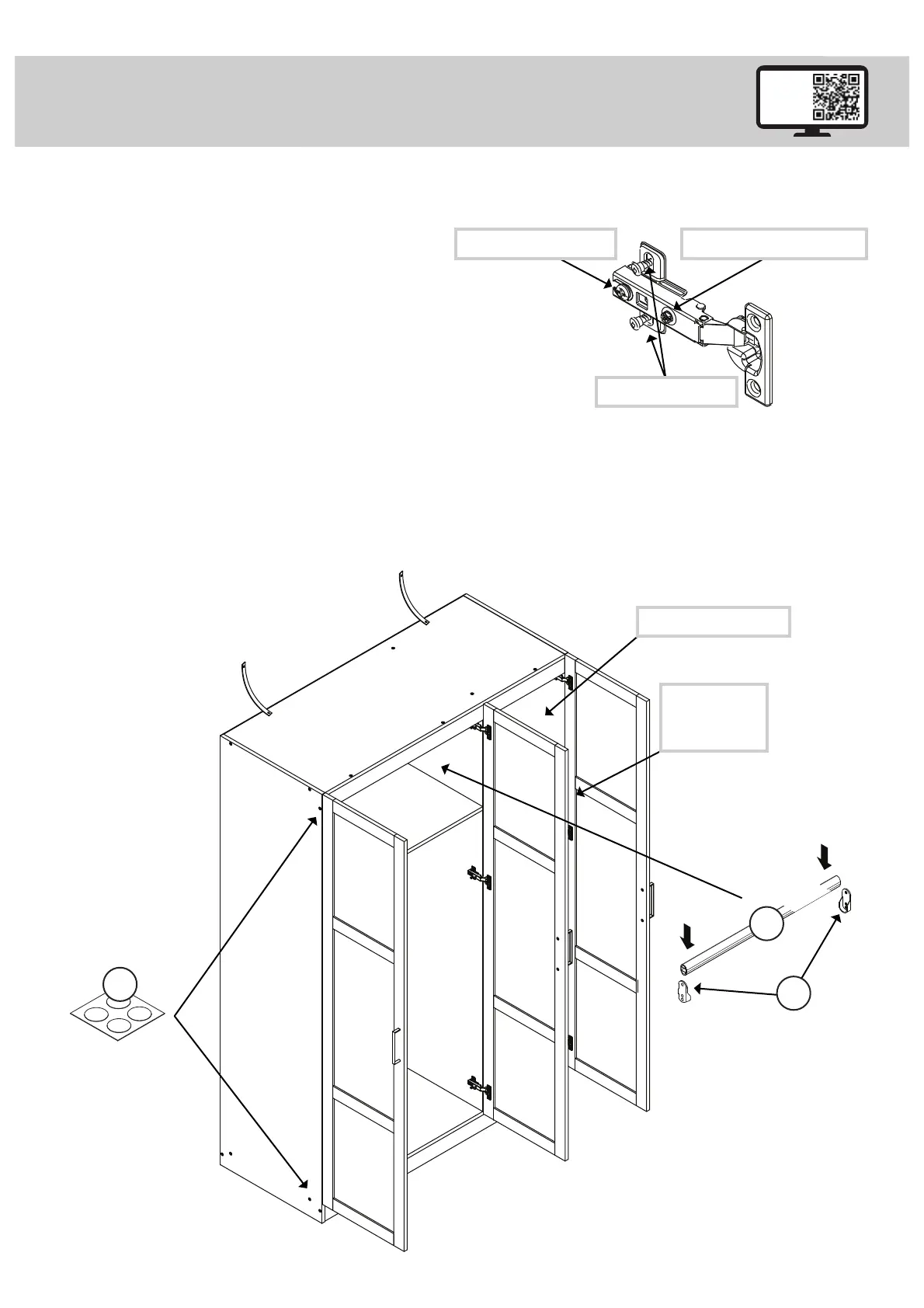

Refer to the enlarged diagram to identify the parts on
the HINGES.
å
The DOORS may need some adjustments. Follow the
text below to make needed adjustments.
å
DOOR ADJUSTMENTS:
To adjust the DOORS from side to side (horizontal), turn the
adjusting screw in or out.
å
To adjust the DOORS up and down (vertical), loosen both
vertical adjustment screws. Move the DOORS up or down to the
desired location. Tighten the screws after making adjustments.
å
To adjust the DOORS in or out (depth), loosen the mounting
screw one turn and move the DOORS in or out, as needed.
Tighten the mounting screw after making adjustments.
å
Place the ROD (11) onto the ROD HANGERS (7) inside
the cabinet.
å
Peel APPLIQUES from the APPLIQUE CARDS (10) and stick
them onto each visible HIDDEN CAM and SCREW head.
Adjusting screw (horizontal)
Mounting screw (depth)
(vertical adjustment)
11
7
Page 22 www.sauder.com/service 430083
10
(5 used)
No load
40 lbs.
50 lbs.
total
35 lbs.
25 lbs. each
ADJUSTABLE
SHELF
25 lbs. SMALL SHELF
