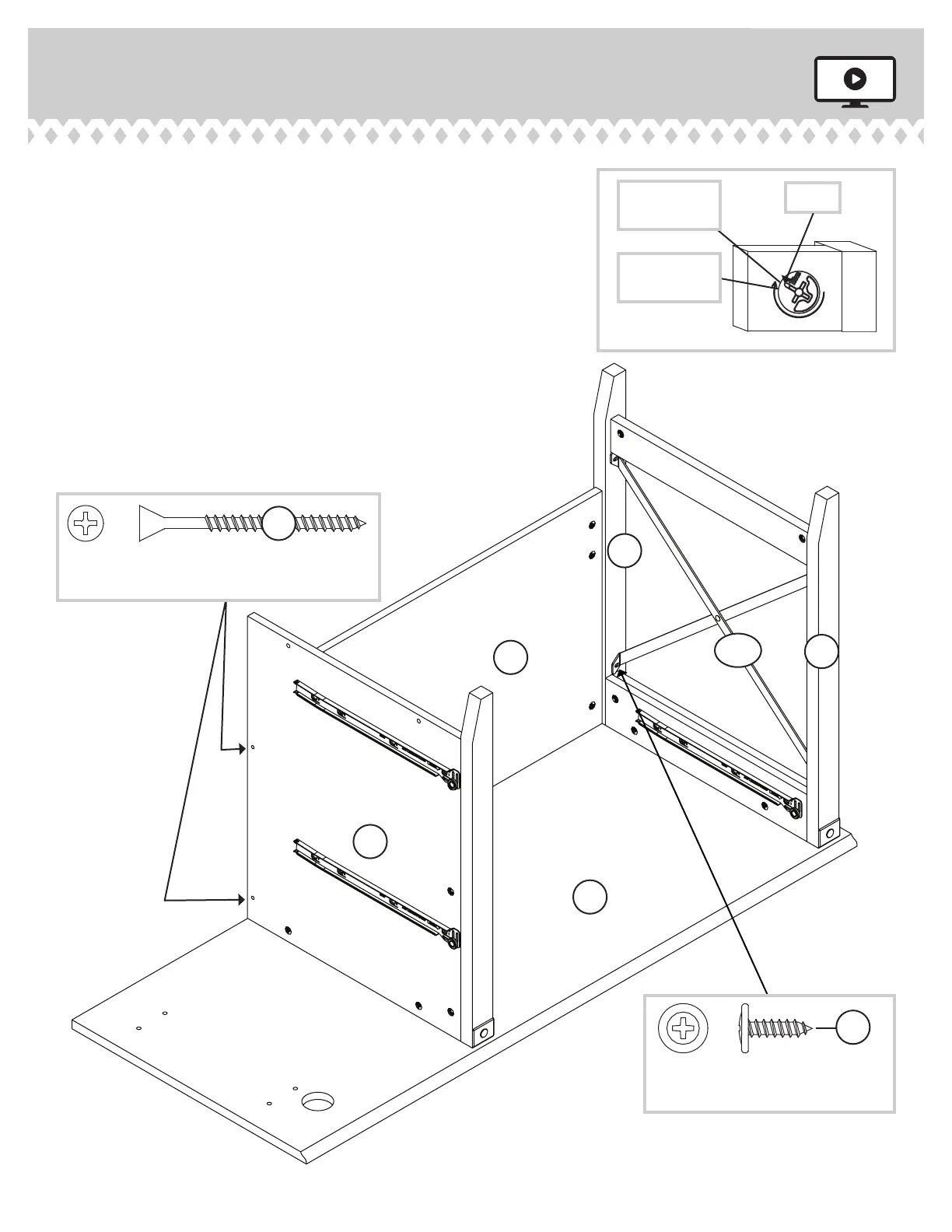

Fasten the UPRIGHT (D) to the TOP (E2). Tighten two
HIDDEN CAMS.
å
Fasten the UPRIGHT (D) to the MODESTY PANEL (G).
Use two SILVER 2" FLAT HEAD SCREWS (57S).
å
Fasten the METAL BRACE (159M) to the LEFT
LEGS (V and X). Use four BROWN 9/16" LARGE
HEAD SCREWS (40S).
Step 12
D
G
E2
V
X
Arrow
Minimum
190 degrees
Maximum
210 degrees
SILVER 2" FLAT HEAD SCREW
(2 used in this step)
57S
Surface with
HIDDEN CAMS
Page 17
159M
BROWN 9/16" LARGE HEAD SCREW
(4 used for the METAL BRACE)
40S
