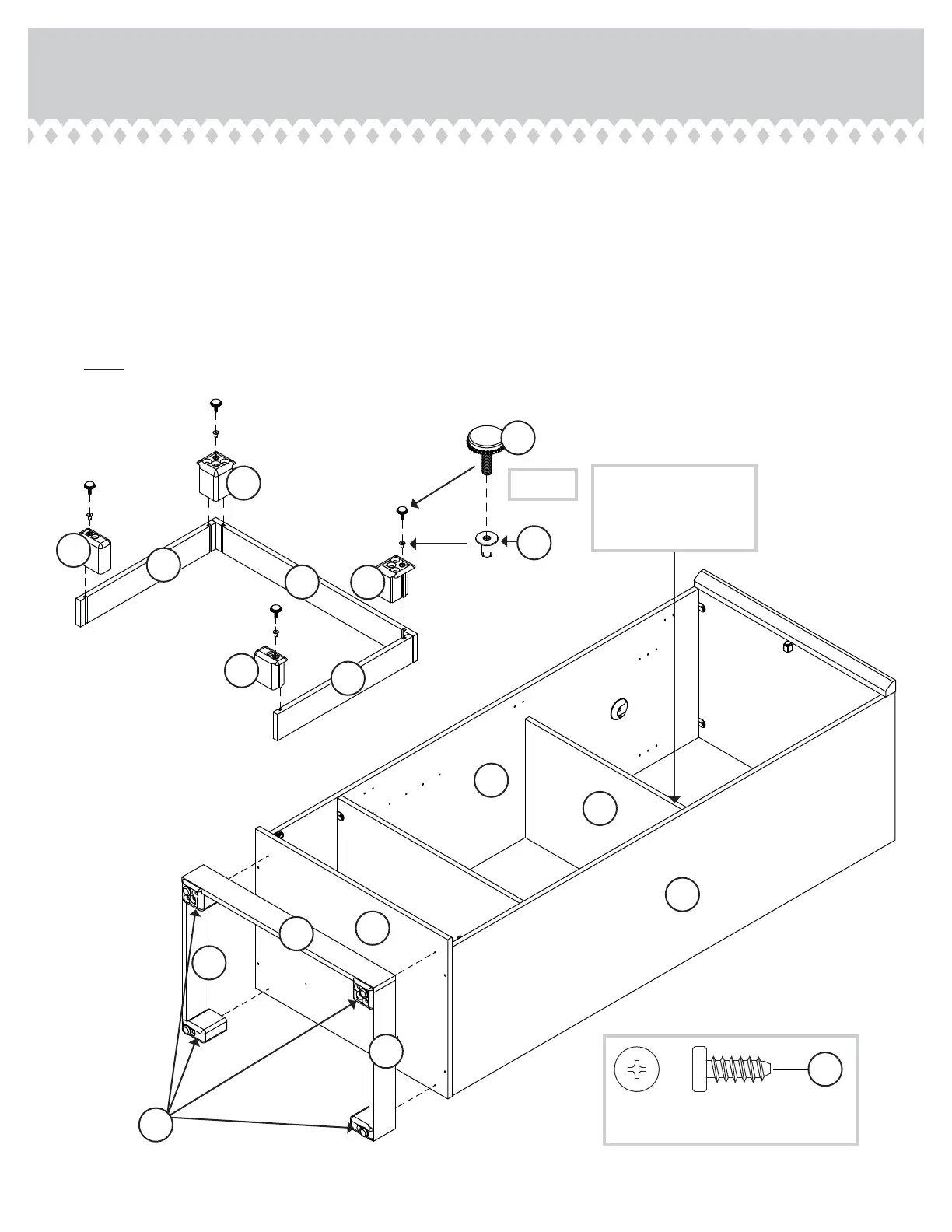

Use a hammer to drive a PROPEL NUT (DD) into the holes in the FEET (EE and FF).
Now, turn an ADJUSTABLE GLIDE (CC) into each PROPEL NUT as shown in the
upper diagram.
å
Slide the FEET (EE and FF) into the notches in the SKIRTS (J and K).
å
Fasten the SKIRTS (J and K) to the BOTTOM (D2). Use four BLACK 9/16" WAFER
HEAD SCREWS (RR) through the FEET and into the BOTTOM as shown in the
lower diagram.
å
NOTE: To raise a corner of the unit, turn the ADJUSTABLE GLIDE
counter-clockwise. To lower a corner, turn the ADJUSTABLE GLIDE clockwise.
