Step 6
å

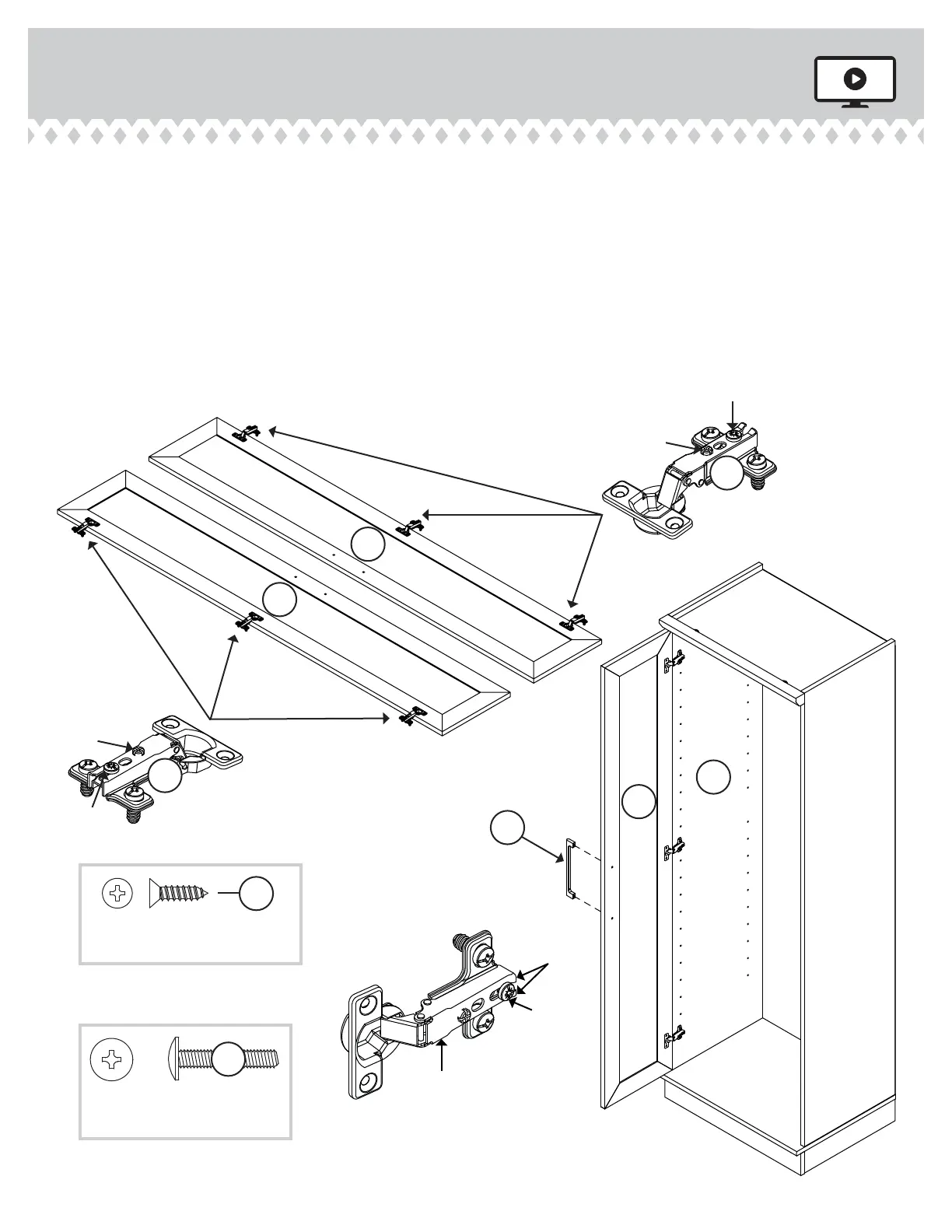

Fasten three HINGES (M) to each DOOR (F) as shown in the upper diagram below. Use twelve BLACK 1/2" FLAT
HEAD SCREWS (Z).
å
Carefully stand your unit upright as shown in the lower diagram.
å
Before fastening the DOOR to your unit, be sure the mounting screw is against the stops as shown in the lower
diagram. If it isn't, loosen the mounting screw to slide it against the stops. Then tighten the mounting screw.
å
Fasten a DOOR (F) to the LEFT END (B). Use the screws in the HINGES. See the next step for adjustments.
å
Fasten a PULL (N) to the DOOR (F). Use two BLACK 7/8" MACHINE SCREWS (W).
å
Repeat this step for the other door.
411963 www.sauder.com/servicesPage 10
F
F
F
B
N
M
Adjusting
screw
Mounting
screw
M
Adjusting
screw
Mounting
screw
BLACK 1/2" FLAT HEAD SCREW
(12 used for the HINGES)
Z
BLACK 7/8" MACHINE SCREW
(4 used for the PULLS)
W
Mounting
screw
Stop
Hinge
