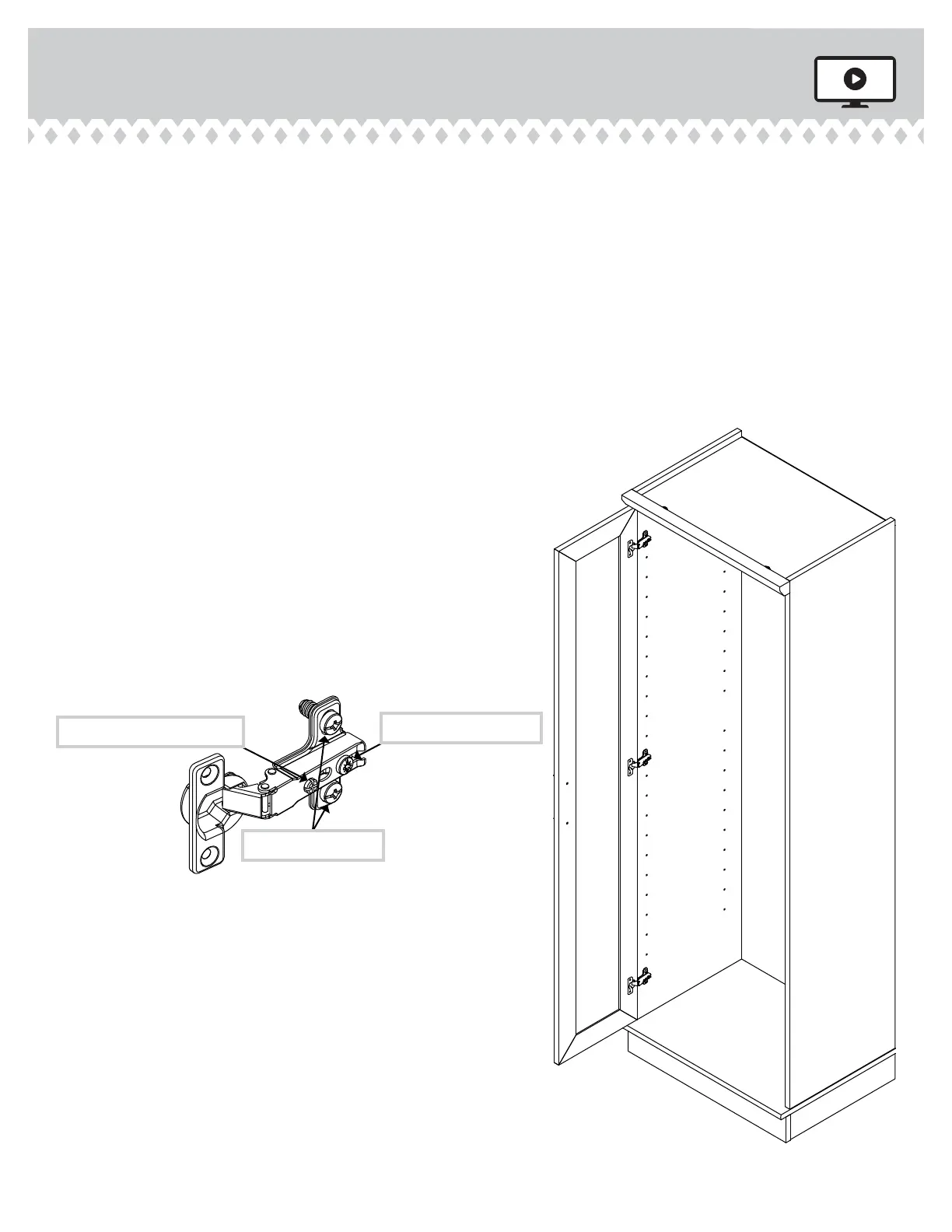

Refer to the enlarged diagram to identify the parts on
the HINGES.
å
The DOORS may need some adjustments. Follow the
text below to make needed adjustments.
å
DOOR ADJUSTMENTS:
å
To adjust the DOORS from side to side (horizontal), turn
the adjusting screw in or out.
å
To adjust the DOORS up and down (vertical), loosen
both vertical adjustment screws. Move the DOORS up
or down to the desired location. Tighten the screws after
making adjustments.
å
To adjust the DOORS in or out (depth), loosen the
mounting screw one turn and move the DOORS in
or out, as needed. Tighten the mounting screw after
making adjustments.
Step 7
411963www.sauder.com/services
Page 11
Adjusting screw (horizontal)
Mounting screw (depth)
(vertical adjustment)
To Next Page
