Step 4
å

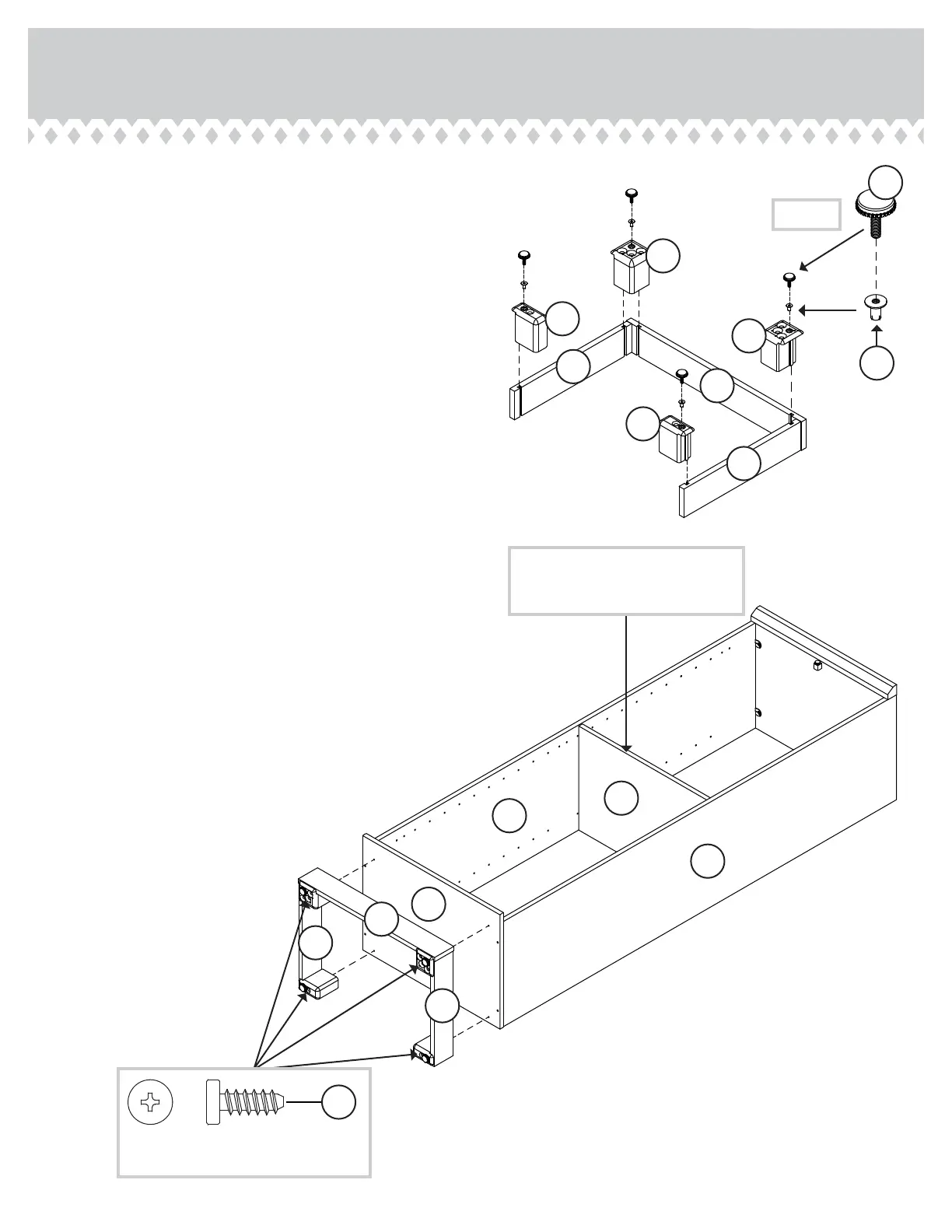

Slide the FEET (I and K) into the notches in the SKIRTS (H
and R) as shown in the upper diagram.
å
Use a hammer to drive a PROPEL NUT (U) into the holes in
the FEET (I and K). Now, turn an ADJUSTABLE GLIDE (T)
into each PROPEL NUT.
å
Fasten the SKIRTS (H and R) to the BOTTOM (D) as shown
in the lower diagram. Use four BLACK 9/16" WAFER HEAD
SCREWS (Y) through the FEET and into the BOTTOM.
411963 www.sauder.com/servicesPage 8
H
R
R
I
K
I
K
T
U
H
R
R
D
Insert an ADJUSTABLE SHELF (G)
between the ENDS (A and B) for
support before turning the unit over.
G
A
B
BLACK 9/16" WAFER HEAD SCREW
(4 used in this step)
Y
(4 used)
