Step 20
425014www.sauder.com/service
Page 25
Surface with one hole
Arrow
Minimum
190 degrees
Maximum
210 degrees
103S
BLACK 2-3/8" FLAT HEAD BOLT
(1 used for the LONG BRACE)
Q
å

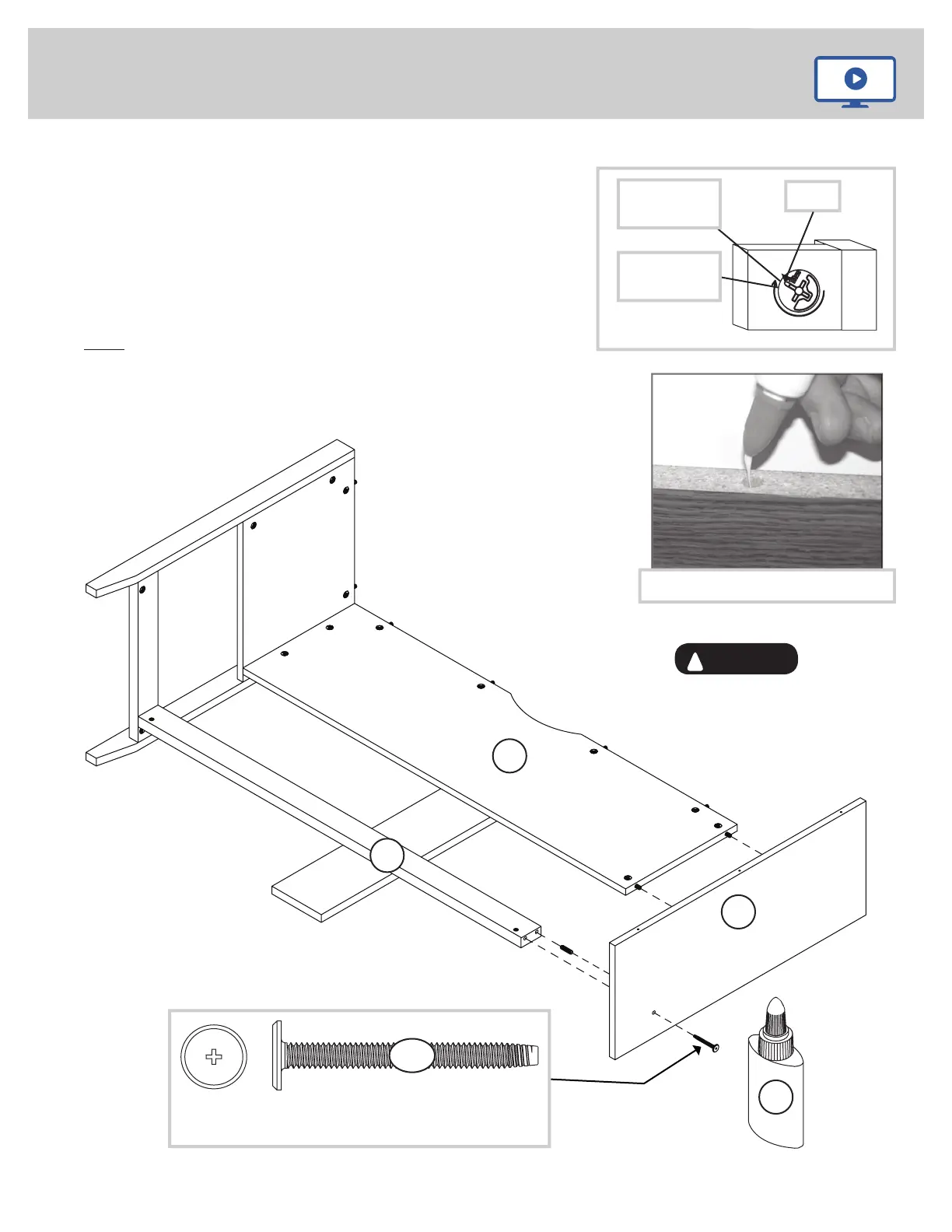

First, fi ll the hole in the LEFT BACK (H) 1/4 to 1/2 full with GLUE.
Then, insert the WOOD DOWEL (15F) into this hole. Wipe away the
excess GLUE.
å
Now, fi ll the hole in the LONG BRACE (Q) 1/4 to 1/2 full with GLUE.
å
Next, fasten the LEFT BACK (H) to the SHORT MODESTY PANEL (G).
Tighten two HIDDEN CAMS.
å
NOTE: Be sure the WOOD DOWEL in the LEFT BACK (H) inserts into
the LONG BRACE (Q). Wipe away the excess GLUE.
å
Fasten the LEFT BACK (H) to the LONG BRACE (Q). Use one BLACK
2-3/8" FLAT HEAD BOLT (103S).
Fill the holes 1/4 to 1/2 full with GLUE.
Inspect the parts thoroughly before
assembling. Disassembly of glued
parts is extremely di cult.
Caution
!
G
H
54M
To Next Page
