Sauder Transit 414417 - Step 14: Assemble Flip Down Door; Fasten Pivot Hinge to Door; Fasten Strike Plate to Door; Install Pivot Hinge with Washers

Step 14
å

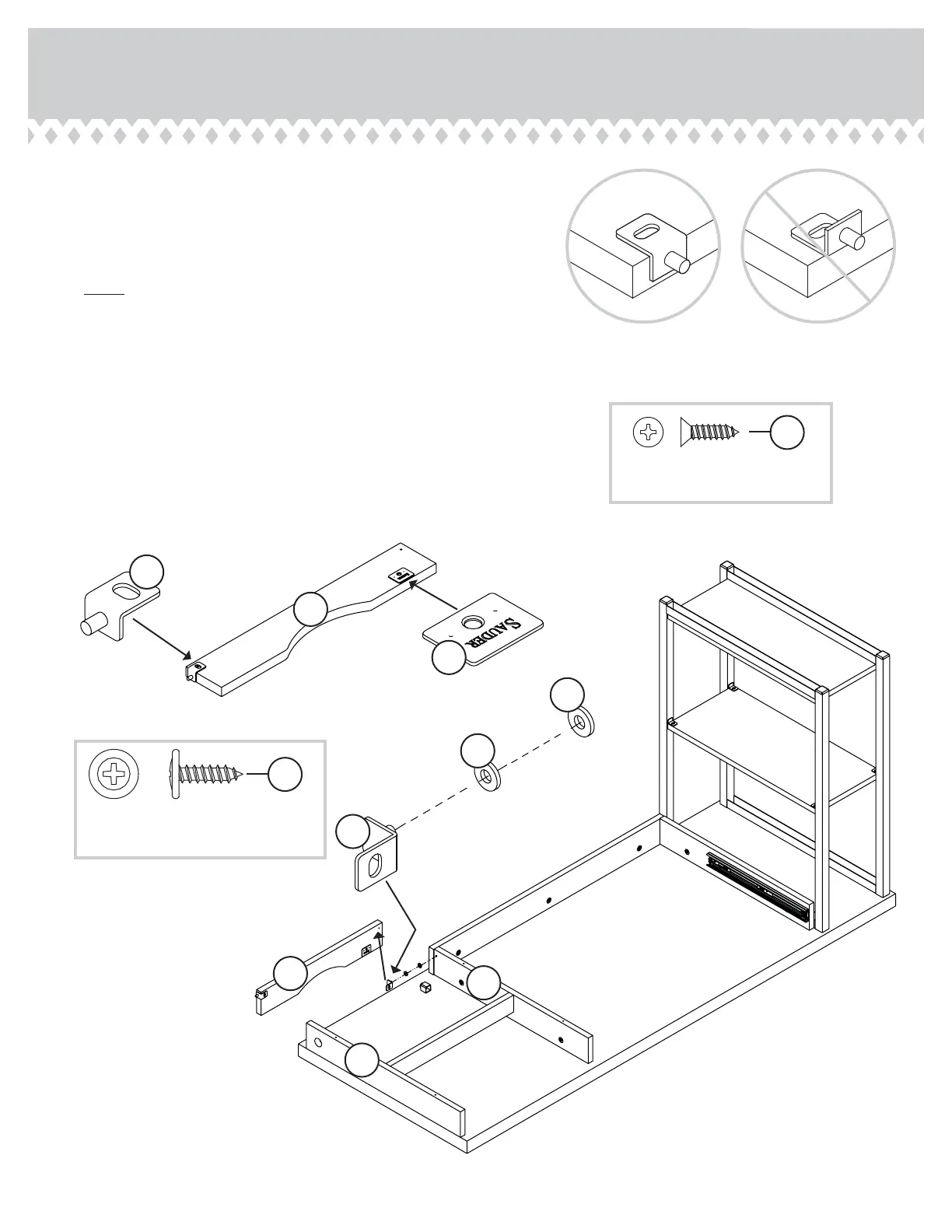

Fasten a PIVOT HINGE (15H) to the FLIP DOWN DOOR (O). Use
a BLACK 9/16" LARGE HEAD SCREW (1S).
å
Fasten the STRIKE PLATE (6I) to the FLIP DOWN DOOR (O). Use
a BLACK 1/2" FLAT HEAD SCREW (11S).
å
NOTE: The surface of the STRIKE PLATE with "SAUDER" should
be facing up.
å
Insert a PIVOT HINGE (15H) into the WASHERS (9I) and into the
CENTER UPRIGHT (D).
å
Insert the PIVOT HINGE, which is fastened to the FLIP DOWN
DOOR (O), into the hole in the UPRIGHT (C). You will need to tilt
your DOOR slightly.
å
Now, tip the FLIP DOWN DOOR (O) in and fasten the free HINGE
to the DOOR. Use a BLACK 9/16" LARGE HEAD SCREW (1S).
414417 www.sauder.com/servicesPage 18
O
15H
O
C
D
6I
15H
9I
9I
BLACK 9/16" LARGE HEAD SCREW
(2 used for the PIVOT HINGES)
1S
BLACK 1/2" FLAT HEAD SCREW
(1 used for the STRIKE PLATE)
11S
