Sauder Transit 414417 - Step 17: Finalize Drawer Assembly; Fasten Drawer Front; Attach Extension Slides to Sides

å

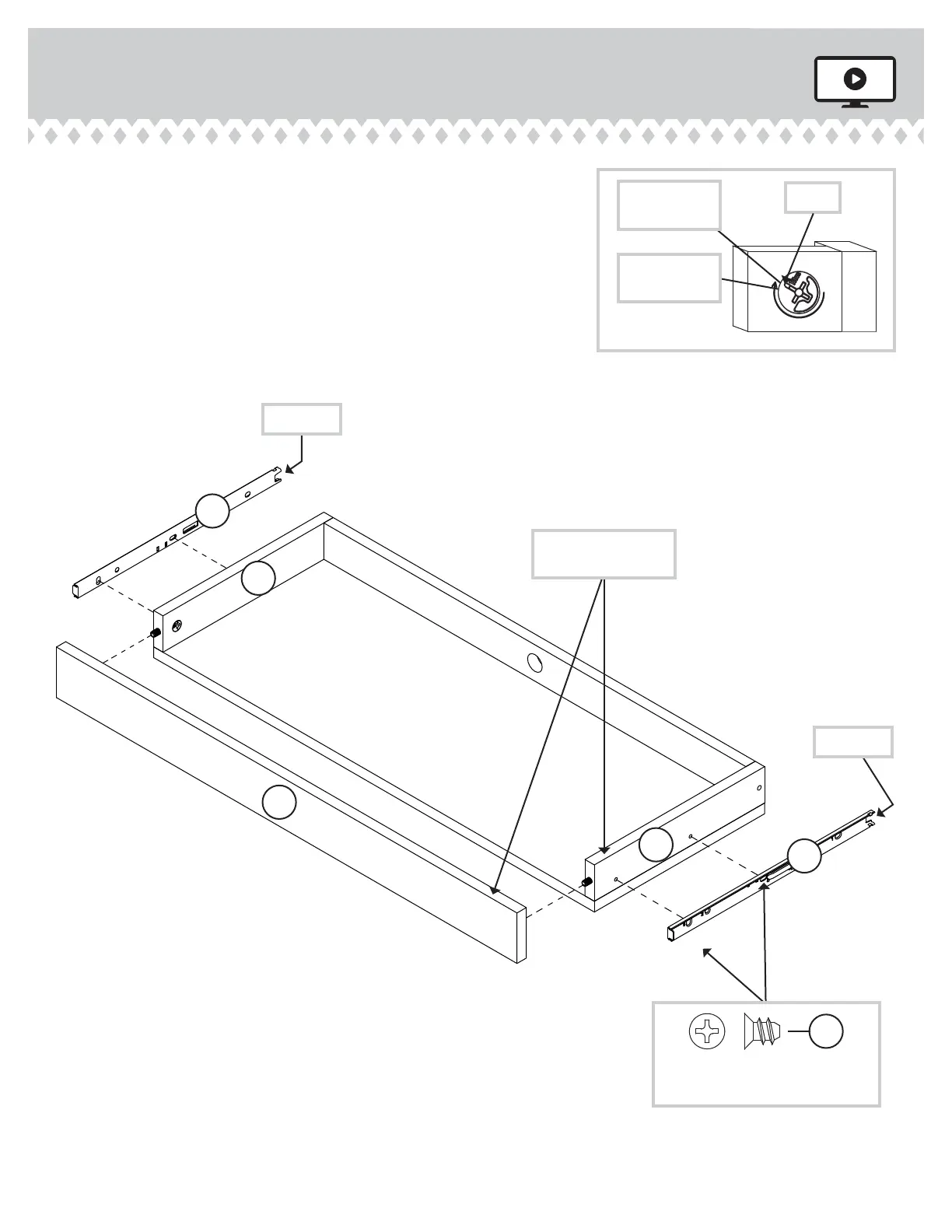

Fasten the DRAWER FRONT (P) to the DRAWER SIDES (R
and S). Tighten two HIDDEN CAMS.
å
Fasten the EXTENSION SLIDES (AA) to the DRAWER
SIDES (R and S). Use four GOLD 5/16" FLAT HEAD
SCREWS (3S) through the center holes and #3.
Step 17
414417www.sauder.com/services
Page 21
R
S
P
AA
AA
1
2
3
Arrow
Minimum
190 degrees
Maximum
210 degrees
Open end
Open end
These edges should
be almost even.
1
2
3
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
3S
