DH and DS Motors
Assembly and Test Procedures
Assembly
You must install the internal gear wheel correctly in relation to the commutation of the
spool valve to get proper rotation.

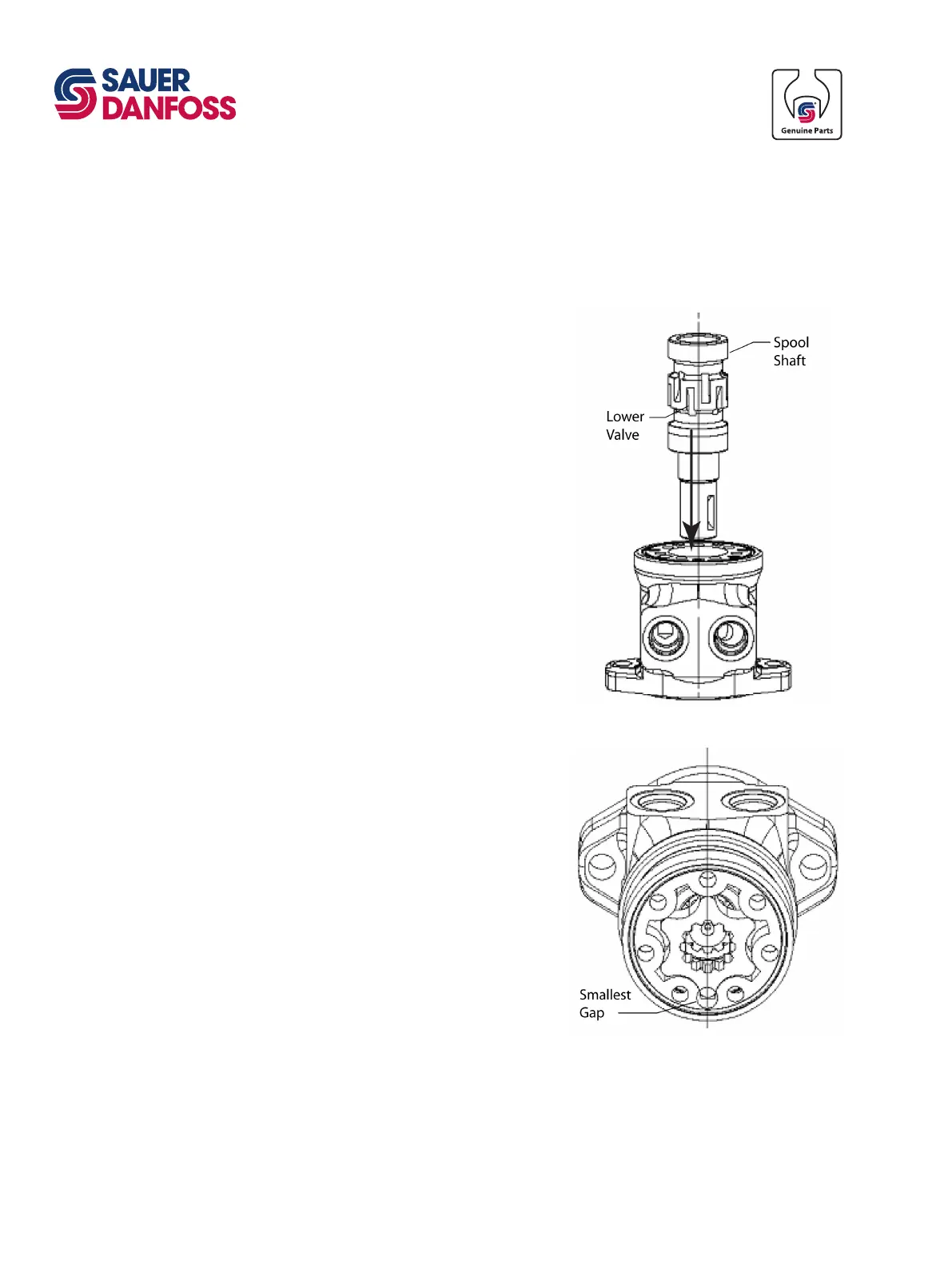

4. Install the spool shaft with a lower
valve about 5 degrees clockwise
from the center of the housing (as
shown).
When mounting the gear set (step 7)
ensure the smallest gap is facing
directly away from the system ports
of the housing.
Motor Assembly
(continued)
Ensure Proper Rotation
