11065435 • Rev AD • October 2011
DH and DS Motors
Assembly and Test Procedures

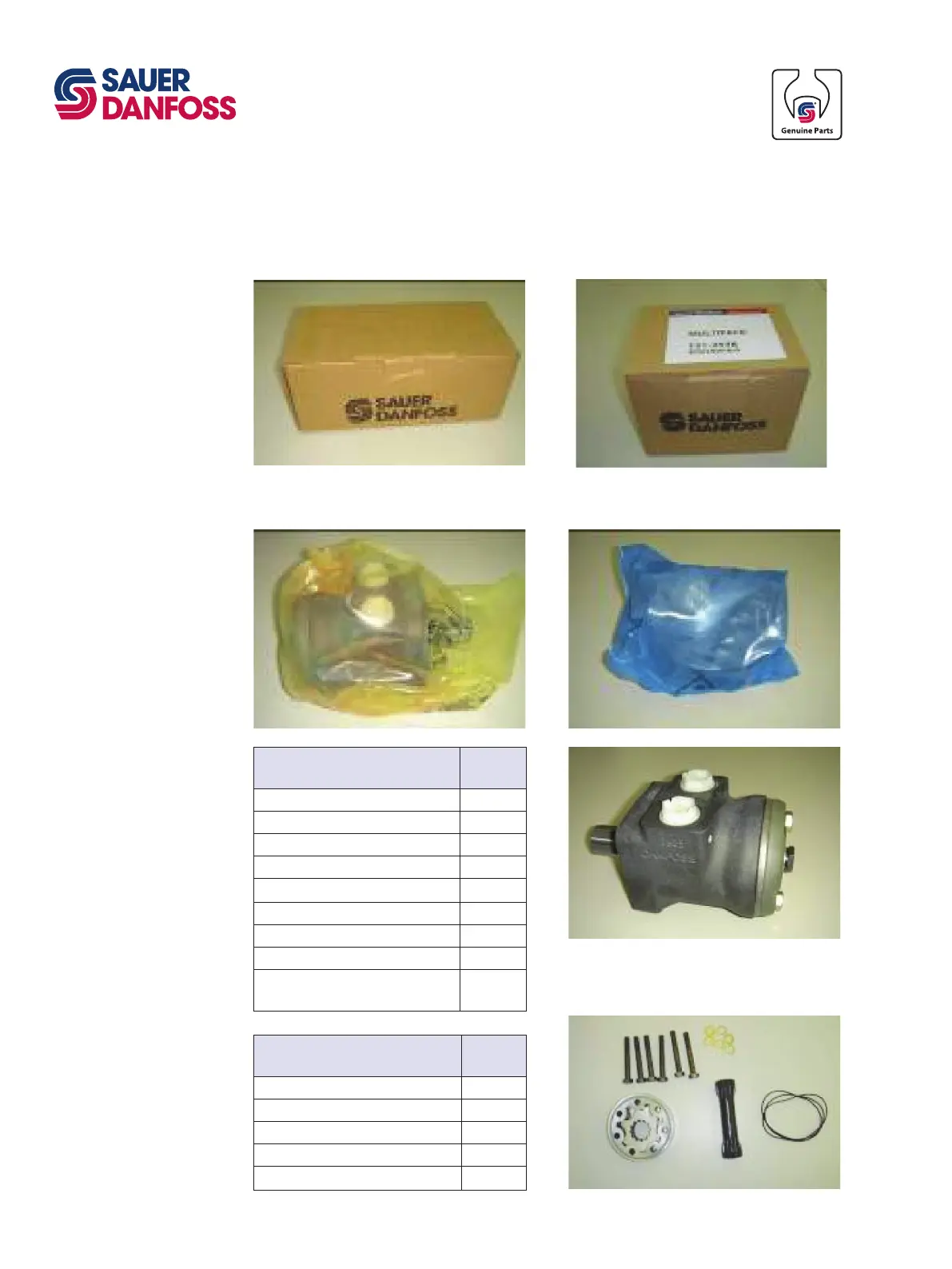

Module Components
Module Components
The housing module and gear wheel set module ship in separate packages. Each module
is packaged in a VCI plastic bag.
Housing module Gear wheel set module
Housing module sealed in plastic Gear wheel set module sealed in plastic
Housing Module
Package Components
Quantity
Motor Housing 1
Spool Shaft 1
End Cover 1
Drain Plug and Washer 1
Shaft Seal 1
Dust Seal Ring 1
Bearing Set 1
Distributor Plate 1
Temporary bolts
(do not use for assembly)
2
Gear Wheel Set Module
Package Components
Quantity
O-rings 3
Gear Wheel Set 1
Bolts plus Belonging Washers (DS) 7
Bolts plus Belonging Washers (DH) 6
Cardan Shaft 1
