11065435 • Rev AD • October 2011
DH and DS Motors
Assembly and Test Procedures
Tools
Tools

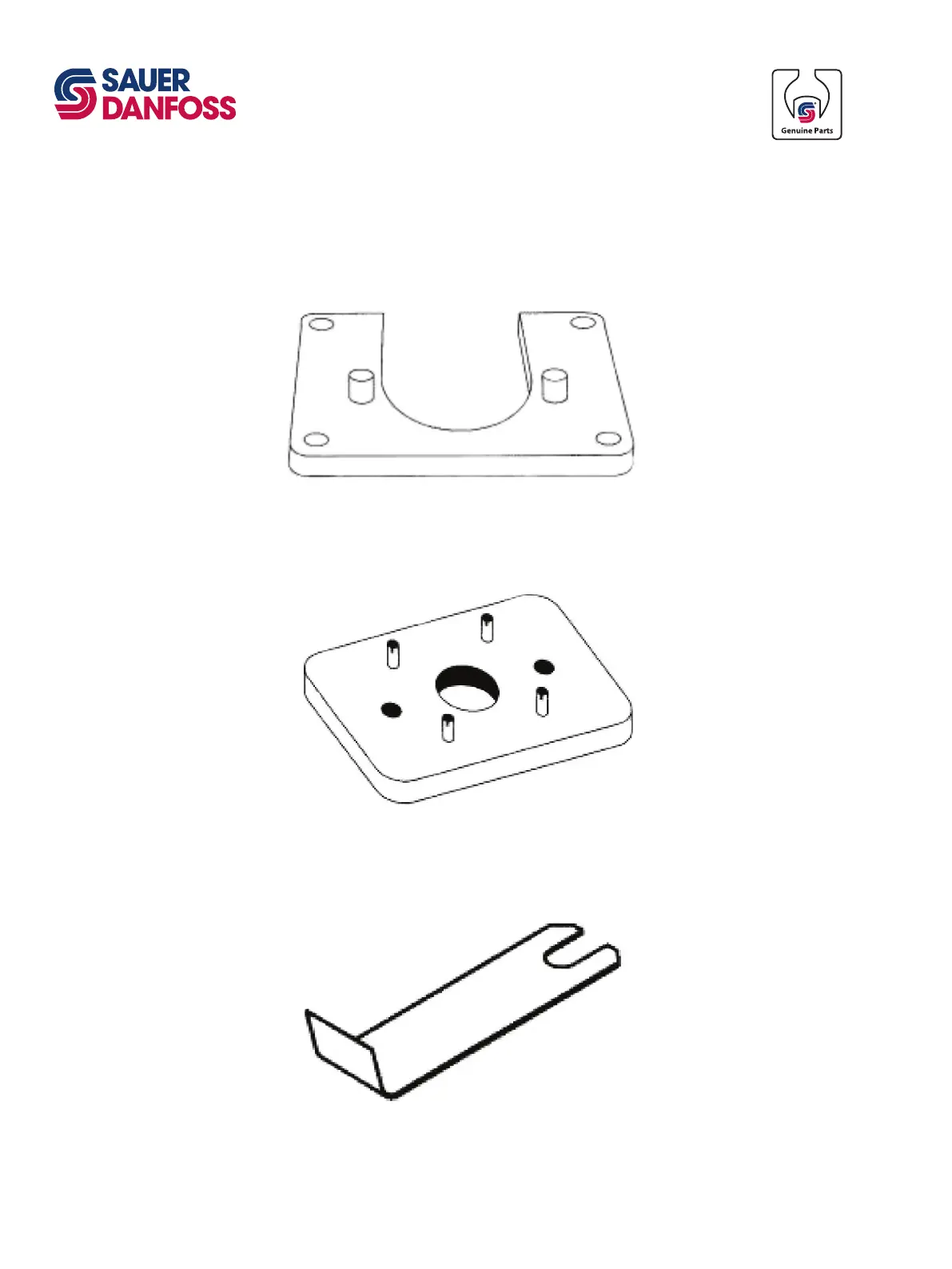

Proper assembly of DH/DS motors requires these tools. You may use the dimensions and
information in the drawings on the next page to fabricate them.
Holding tool for motors with A2 flange (horseshoe)
Holding tool for motors with C flange
Fork tool
To Next Page
