Sauer Danfoss DH 80 - Hydraulic Test Schematic

15
11065435 • Rev AD • October 2011
DH and DS Motors
Assembly and Test Procedures
Schematic

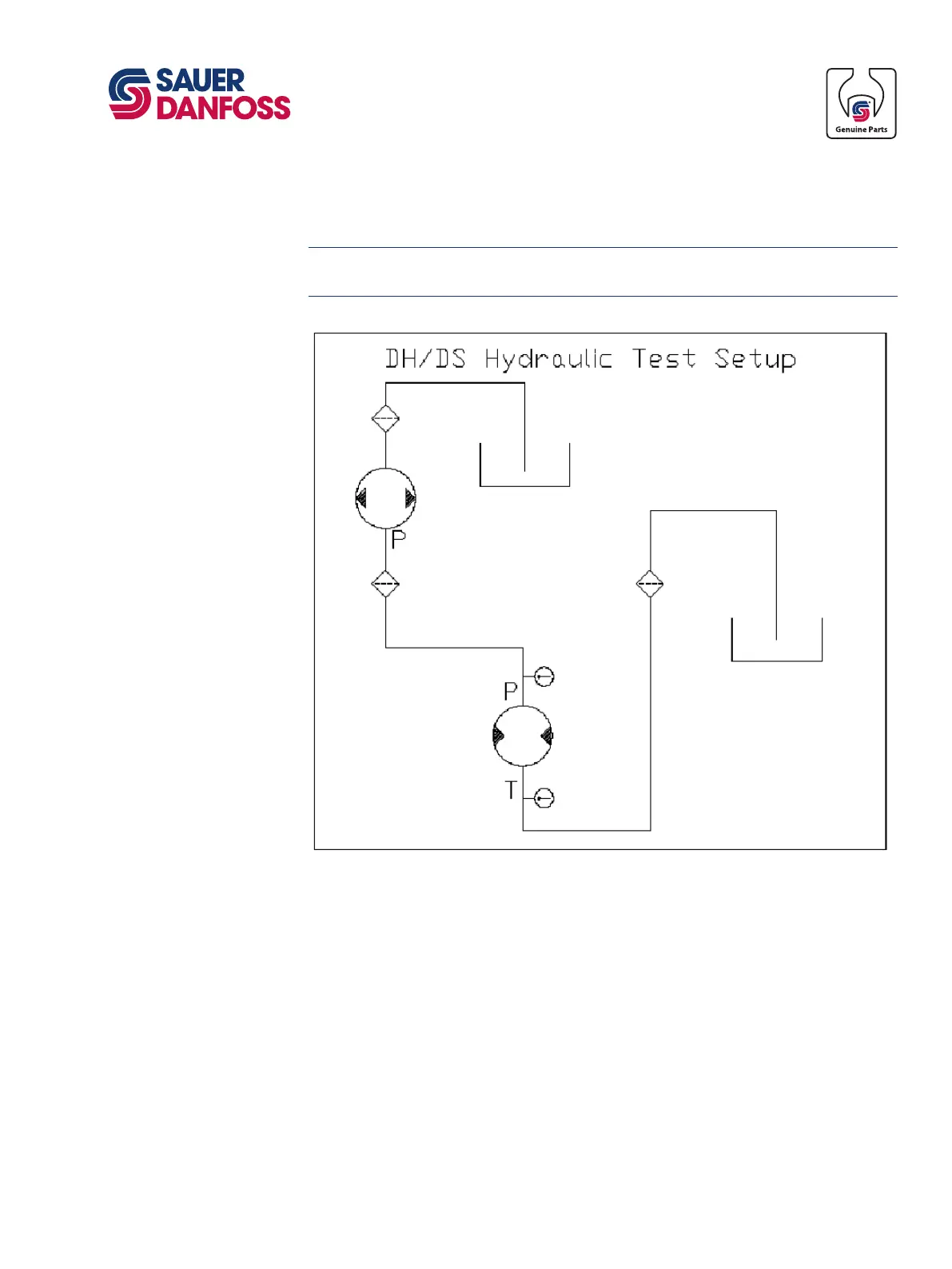

Hydraulic Schematic
The following schematic shows the proper connection of the motor to the hydraulic
power unit for testing purposes.
Note the position of the two pressure gauges. Position them as close as possible to the ports
of the motor for the most accurate reading.
