11065435 • Rev AD • October 2011
DH and DS Motors
Assembly and Test Procedures
Assembly
Motor Assembly
Position motor with shaft pointing down. Use A2 ange tool or C ange tool depending
on your housing conguration.

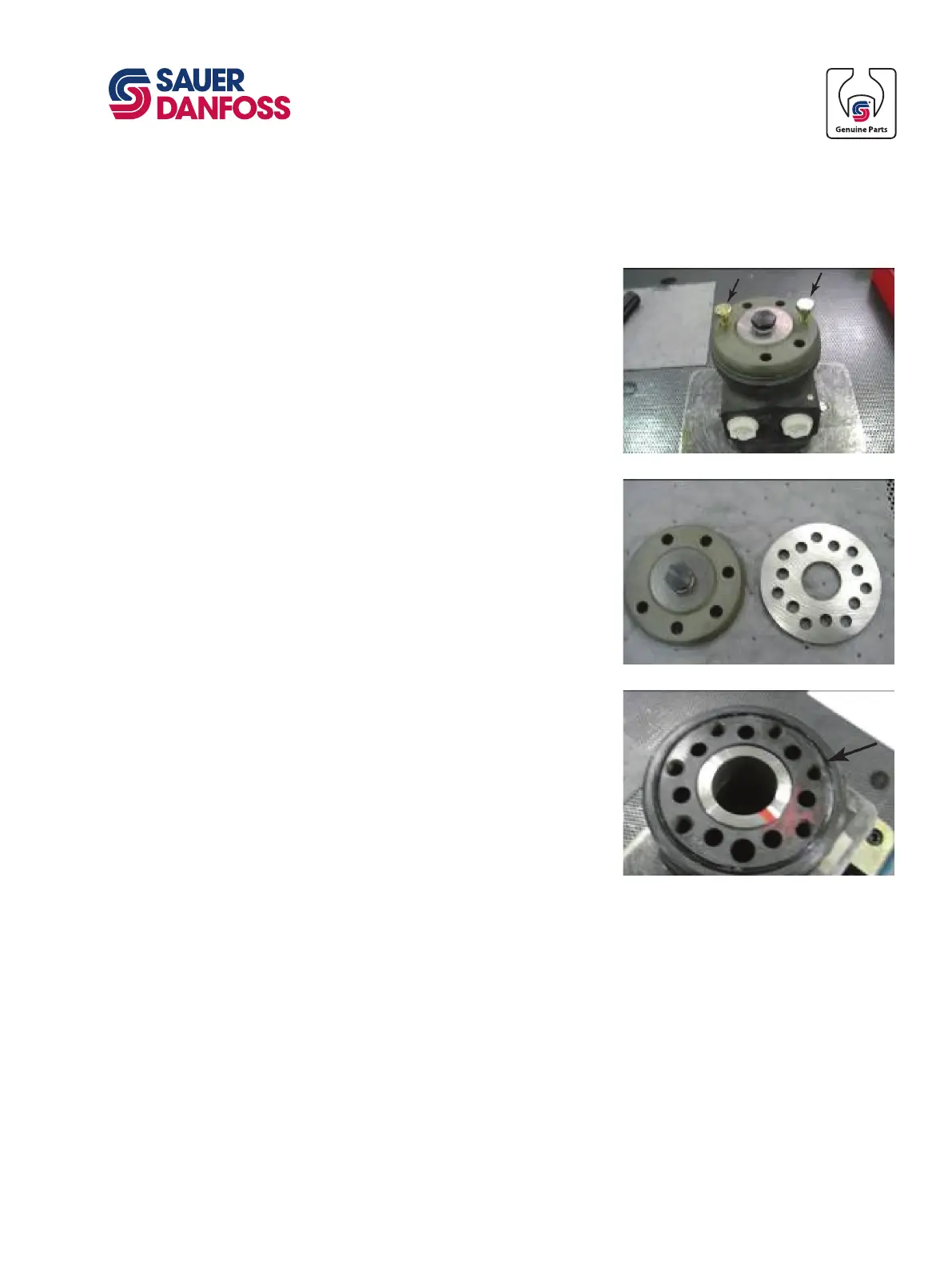

1. Remove and discard the two
temporary bolts that fasten the end
cover.
2. Remove end cover and distributor
plate from the housing.
3. Grease an O-ring and position it in
the O-ring groove. Ensure spool shaft
timing is correct.
