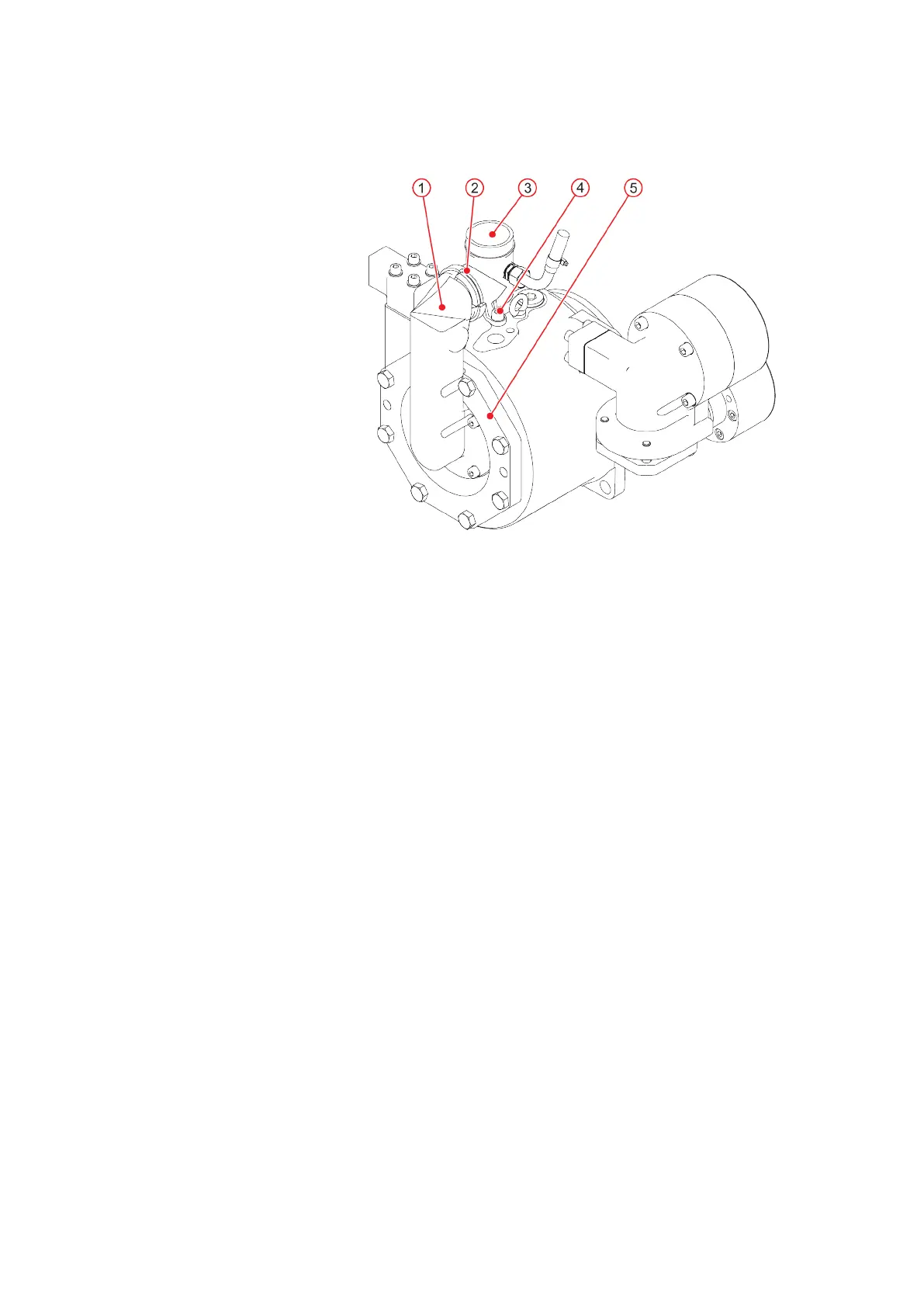

Fig. 5: Compression stage 1
1 Inlet pressure manifold
2 O-ring
3 Filter flange
4 Membrane dryer union
5 Socket head cap screw
6 Valve cover
Compression stage 1
valve
MAINTENANCE
WP5000 Basic WA 41013675 en GB 20190916 | 25
