4.1.6.1 Checking pistons and cylinders
Personnel:
n
Service personnel
Protective equipment:
n
Protective gloves
n
W
ork clothing
n
Safety boots
The term cylinder as used here also includes cylinder liners.
Compression unit has already been removed. Piston has already been dis-
assembled. Ä see "Replacing the piston rings, gudgeon pins and gudgeon
pin bearings"
1. Check the piston and cylinder for scoring marks and excessive wear
.
2. If there is excessive wear
, replace the parts.

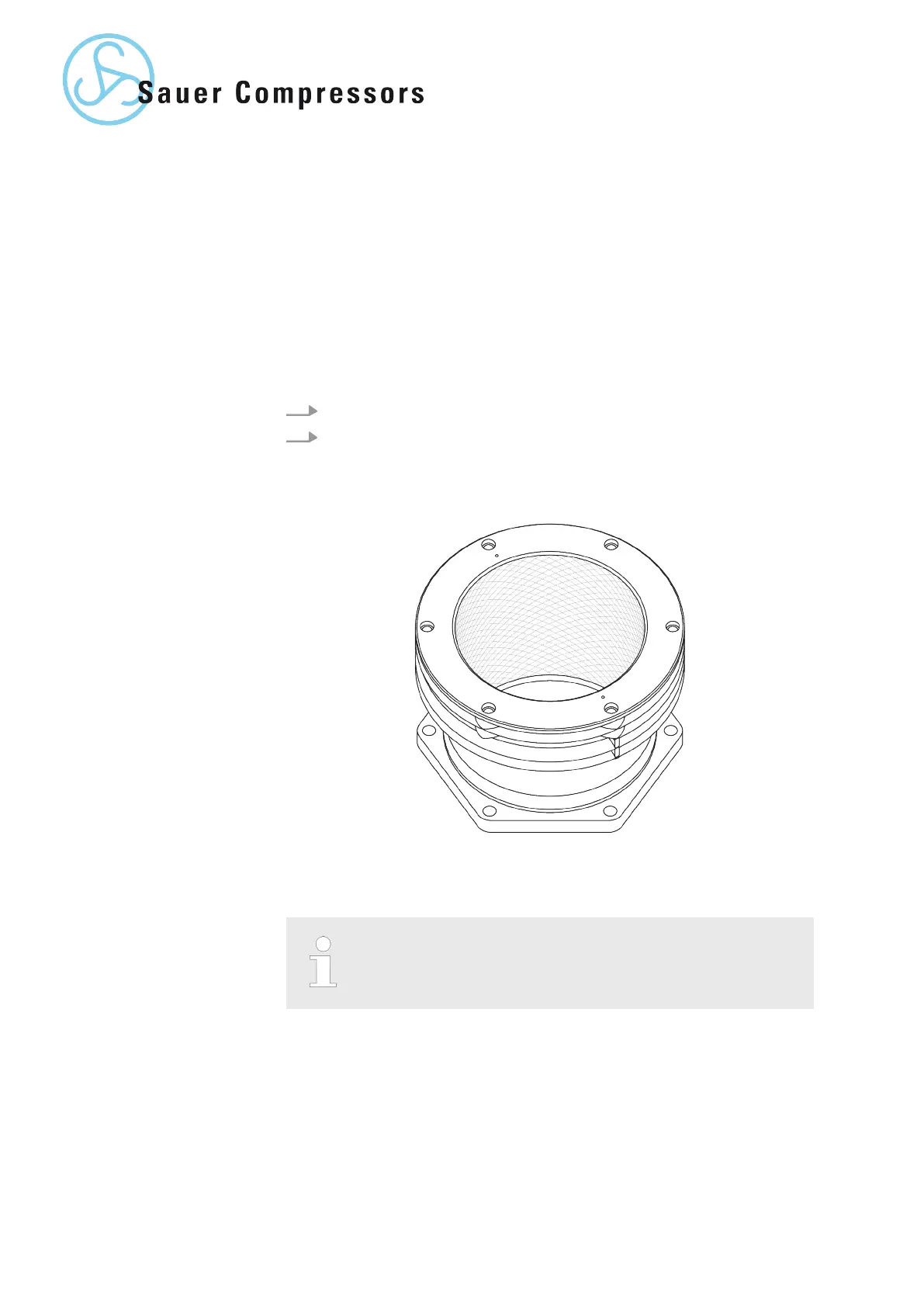

Fig. 13: Cylinder surface in unused condition
Contact the Sauer-Service department of Sauer USA if
cylinders or pistons need to be replaced.
