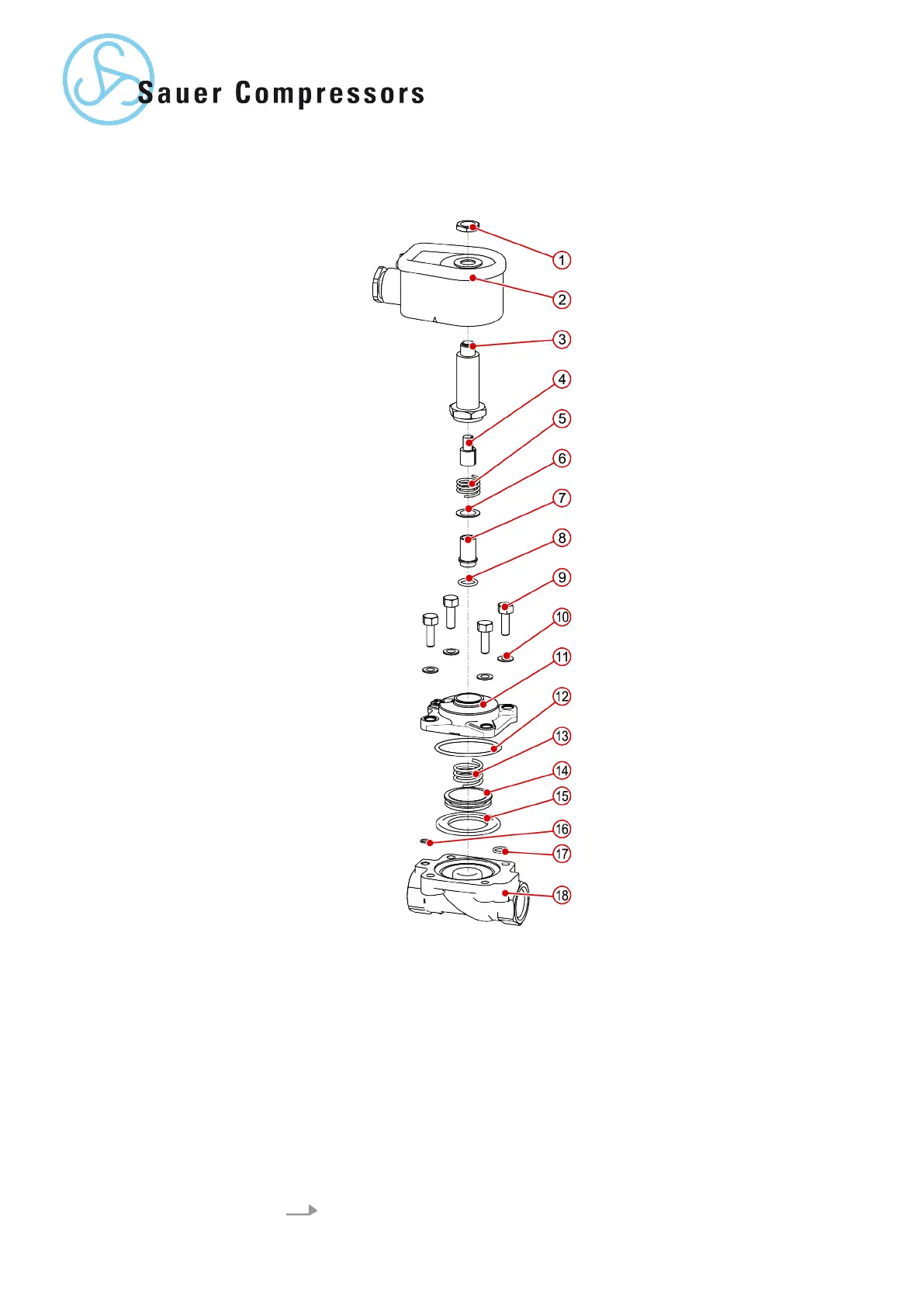

Fig. 16: Servicing the solenoid drain valve
1 Hexagon nut
2 Coil
3 Solenoid armature tube
4 Solenoid armature upper part
5 Solenoid armature spring
6 Spring washer
7 Solenoid armature lower part
8 O-ring
9 Hexagon head screws
10 Washers
11 Housing upper part
12 O-ring
13 Membrane spring
14 Membrane socket
15 Membrane
16 Compensating jet o-ring
17 Housing lower part O-ring
18 Housing lower part
To maintain the solenoid drain valve:
1. Unscrew the hexagon nut.
44 | WP5000 Basic WA 41013675 en GB 20190916
