User information

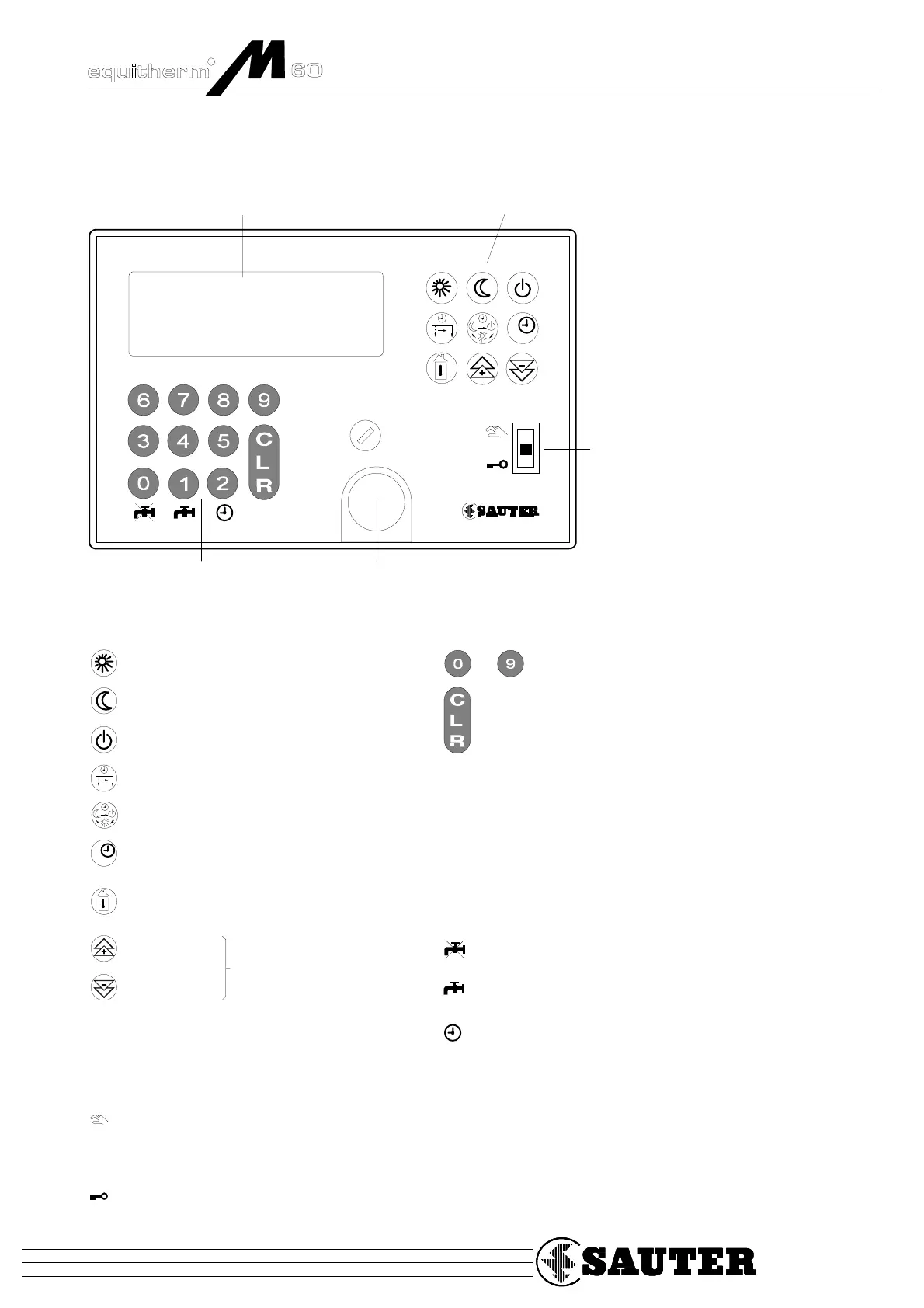

Controller front view
Information panel Operating keys
Slide switch
Service and adaptor keypad
SETPROPAR SERV
SERV
Normal operation
Reduced operation
OFF mode
Party
Short-term presence/absence
Automatic operation acc. to time program
Normal-temperature setpoint
(= PAR 1)
Forward
Return
Numerical keypad
Clearing and preparation of a new entry
Control parameter entry
Time program entry
Entry of day of the week,
time and date
Service
Domestic-hot-water system disabled
Domestic-hot-water system enabled
Annual program in conjunction
with PRO key
. . .
PAR
PRO
SET
User keypad with function keys Service and adjustment keypad
Operating-mode switch
Operating elements
1
AUTO
2
2
AUTO
Incrementation keys
1
B01493
Manual operation
Automatic operation
Service
Interface RS 232
R
–
3
–
