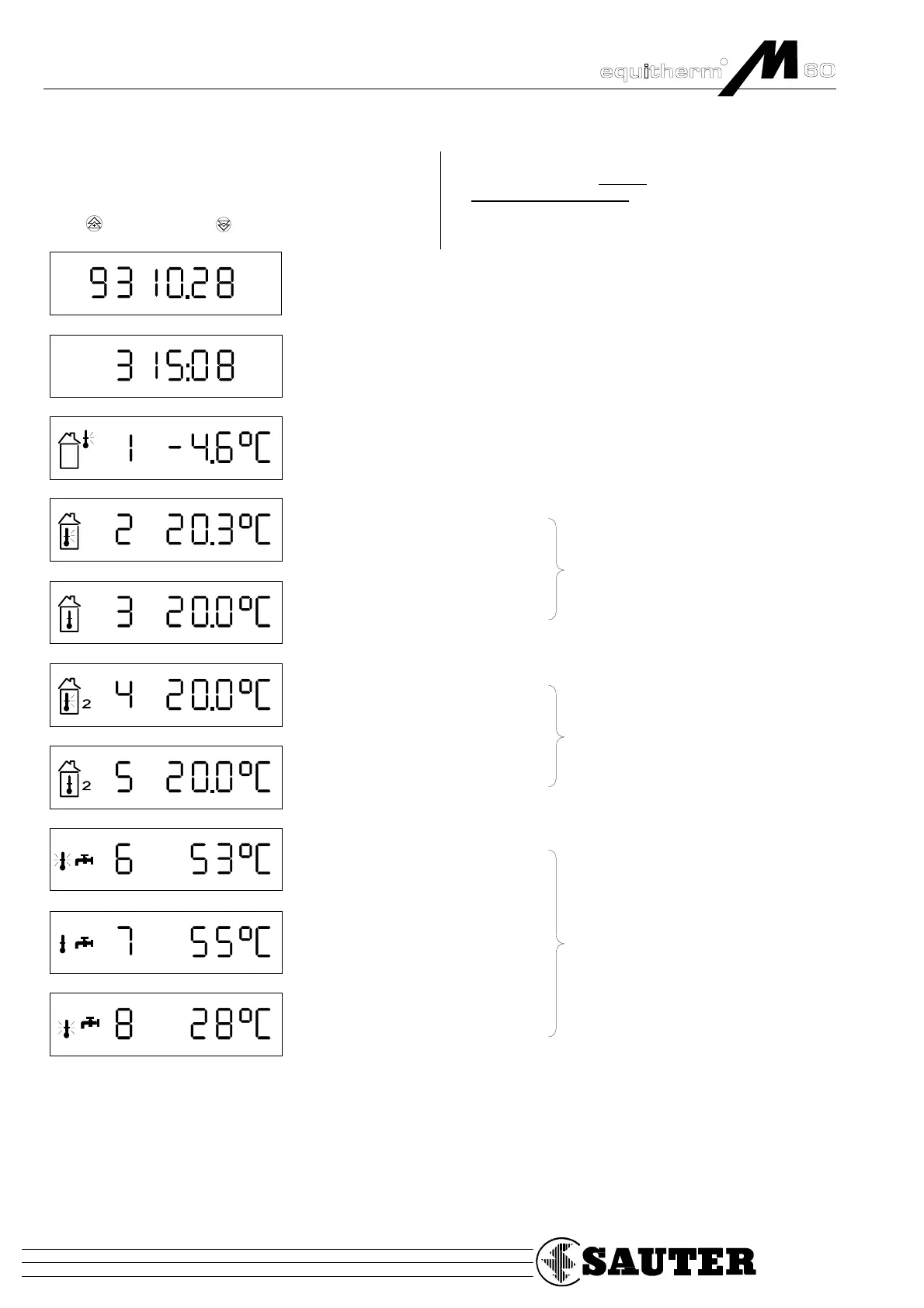

Control values
In closed-loop operation, several values can be inquired or dis-
played continuously.
The display can be changed by means of the incrementation
keys (forward) and (return).
A thermometer symbol is always shown in conjunction with a
temperature setpoint; a flashing thermometer symbol indicates
an
actual temperature value.
Year/month/date of the digital clock (from the controller)
B07565
2
Weekday and time of the digital clock
Actual value of ouside temperature
Actual value of room temperature
Setpoint for room temperature
Actual value of room temperature
Setpoint for room temperature
Actual value of DHW temperature
(upper)
Setpoint for DHW temperature
Actual value of DHW temperature
(lower)
DHW
Heating circuit 2
Heating circuit 1
