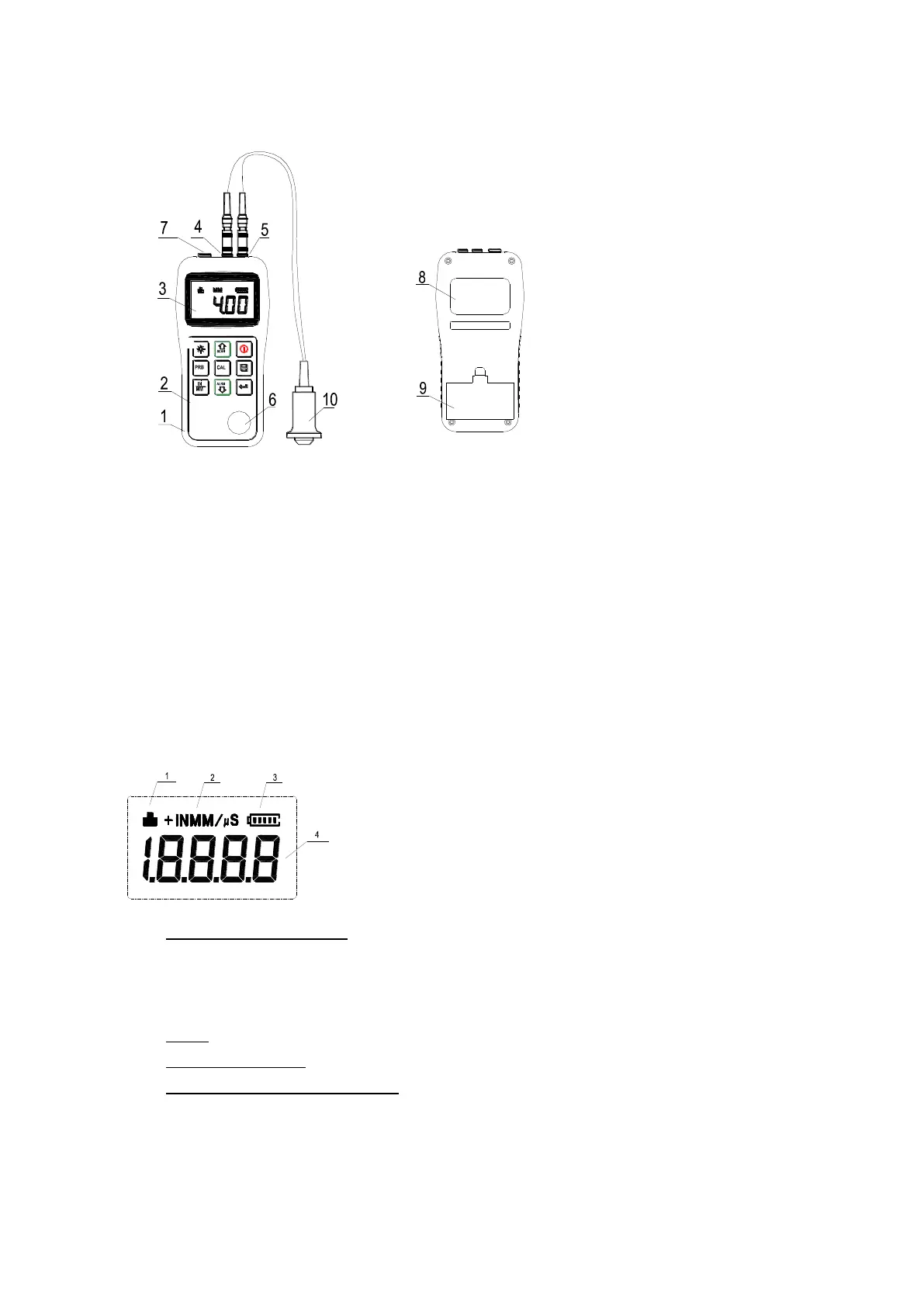

2. Design features
1 The main unit (display unit)
2 Keypad
3 LCD display
4 Pulse encoder socket
5 Radiation receiver socket
6 Zero plate
7 PC connection socket
8 Label (on the back)
9 Battery cover
10 Ultrasonic probe
2.1 Digital display
1. Pairing status: shows the pairing status;
This symbol must appear while measurements are being taken. If this is not the
case, the instrument has problems obtaining stable measurements and it is very
likely that deviations will occur.
2. Unit: mm or inches for the material thickness m/s or in/µ s for the speed of sound
3. Battery indicator: shows the remaining capacity of the batteries
4. Information on the display: The determined material thickness value and the
speed of sound can be read off and indicates the current operation.
