Savannah Heating OD2000-45 - Flame Adjustment Guide

Page 9 of 18

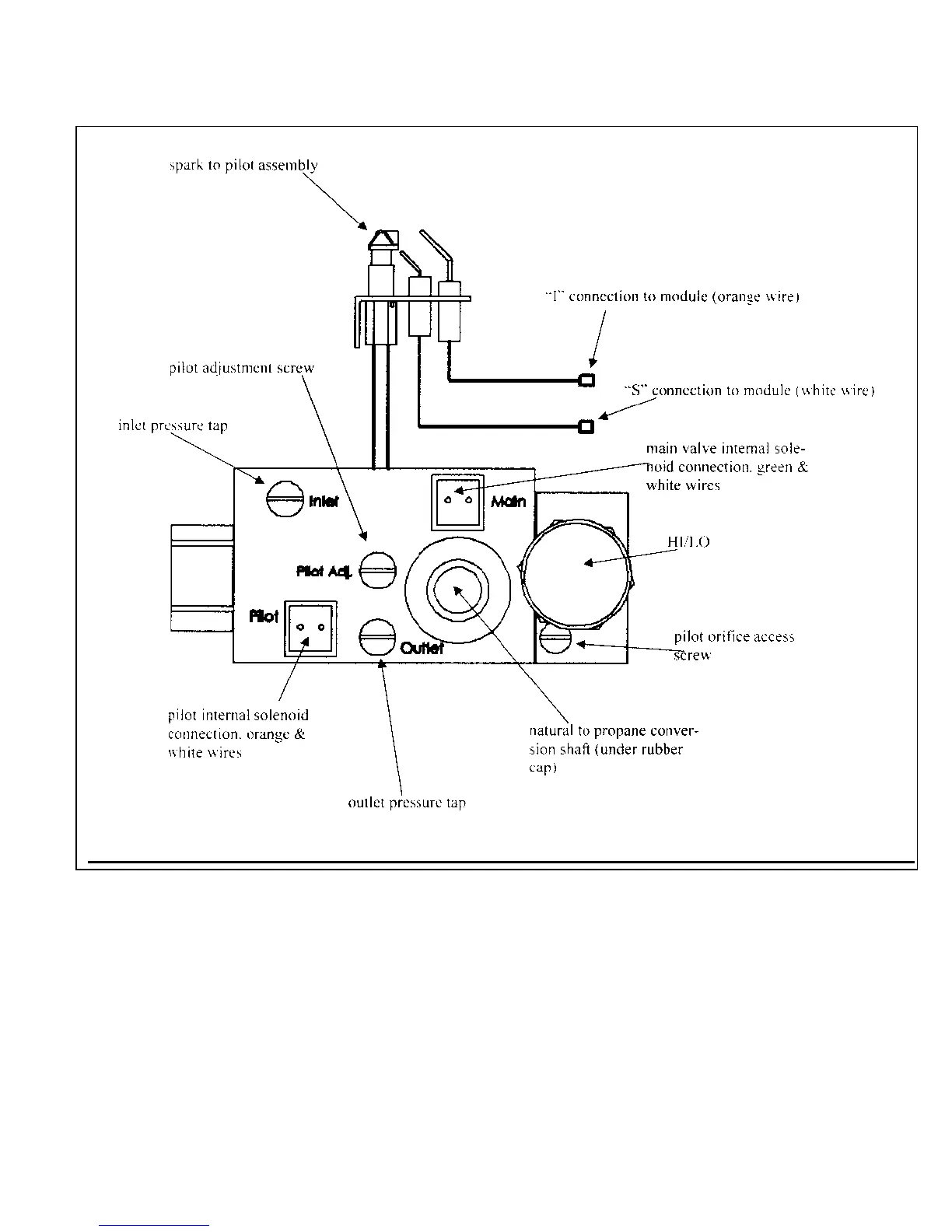

GAS VALVE DIAGRAM
FLAME ADJUSTMENT
The valve supplied with the appliance has a HI/LO knob to control the flame height. To adjust the
flame height, turn the adjustment knob. Turning the knob in a clockwise direction sets the valve to the
maximum setting, turning the knob in a counterclockwise direction sets the valve to the minimum
setting.
