HVAC Wiring
Use the table below when making connections between the thermostat and an HVAC system. The type of HVAC
system installed determines which wires are connected and in some installations, the power wires are the only wires
required.

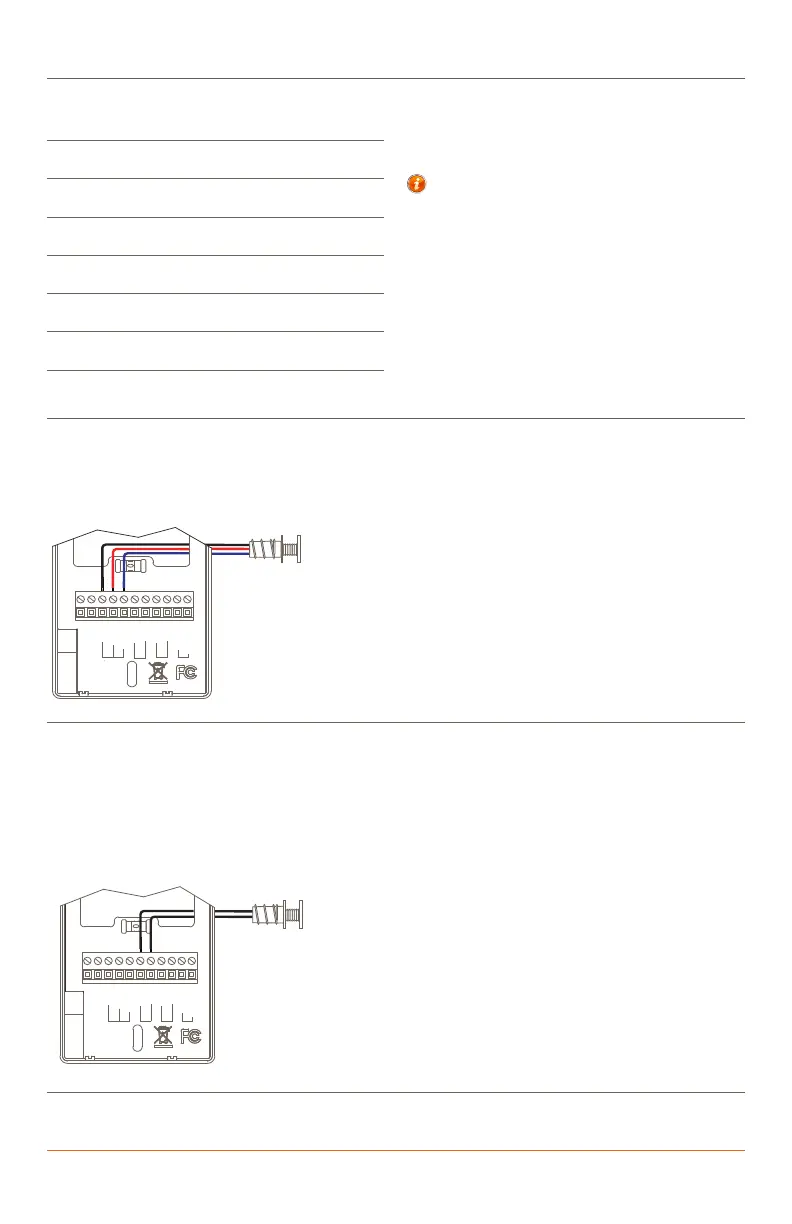

1-Wire Smart Sensor
An external temperature/humidity flush mount one wire compliant smart sensor can be purchased separately. This
sensor can be used in place of the internal temperature/humidity sensor or used along with the internal sensor to
calculate and display an average reading of the temperature and humidity in a room or space. Refer to the diagram
below when making connections.
10K Thermistor
Included in the box is a 10KΩ thermistor type temperature sensor. The CLI-W210x includes two thermistor ports
labeled RS1 and RS2 for this type of sensor. Like the smart sensor described above, this sensor can replace the
onboard temperature sensor or can be used to calculate an average reading of the temperature in a room or space.
The 10K sensors do NOT observe any polarity. Refer to the diagram below when making connections for 10K type
sensors or thermistors.
Remote Sensors
O
Relay to control changeover valve on a Heat
Pump
G Fan Relay
Y2 Relay for control of 2nd stage cooling
Y1 Relay for control of 1st stage cooling
W2 Relay for control of 2nd stage heating
W1 Relay for control of 1st stage heating
HELPFUL!
– Refer to the Making Connections section
above to ensure a safe and secure connection
is made.
– Additional information on the terminal desig-
nators and how to wire the thermostat into dif-
ferent types of HVAC systems is available in the
Multistat Smart Thermostat Deployment Guide
located on the Savant Customer Community.
AUX OUT
AUX IN
RS2
RS1
GND
GND
RX-
RX+
GND
1-WIRE
5V DC
Remote Sensor
Optional 10K Type Sensors
In addition to the 10KΩ thermistor type sensor included with the CLI-
W210x, Savant oers a range of 10KΩ type sensors.
– SST-TEMP1-xx Flush Mount Remote Sensor (QRG: 009-0800-xx)
– SST-OTEMP-xx Outdoor Remote Sensor (QRG: 009-0989-xx)
– CLI-PLEN1R/C-xx Plenum Sensor (QRG: 009-1096-xx)
– CLI-SLAB1-xx SLAB Sensor (QRG: 009-1097-xx)
AUX OUT
AUX IN
RS2
RS1
GND
GND
RX-
RX+
GND
1-WIRE
5V DC
Remote 1-Wire
Sensor
– See the Remote Temperature and Humidity Sensor (CLI-THFM1)
QRG (009-1064-xx) for more information on this sensor.
