6
Operation
Please read carefully before using the device
This system is intended to be used only with 6V & 12V Lead Acid Batteries, e.g. Wet, Gel,
AGM and 12.8V 4-cells LiFePO4. This charger is suitable to charge…
• 6V batteries with a capacity of 12 - 120Ah
• 12.8V 4-cells LiFePO4 Lithium batteries with a capacity of 8 - 50Ah
Preparing The Battery
It is recommended to disconnect the battery from the car if possible. If you remove the
battery from the vehicle, always remove the grounded terminal from the battery at first.
To avoid sparks, make sure all vehicle electronics are turned off. A marine (boat) battery
must be removed and charged on shore (to charge on-board requires special devices
designed for marine use).
Follow your battery manufacturer´s precautions and preparatory measures, such as
removing or not removing cell caps while charging. Make sure the charging rate is not
over your battery manufacturer´s suggestion.
Do not try to open a sealed or maintenance-free battery.

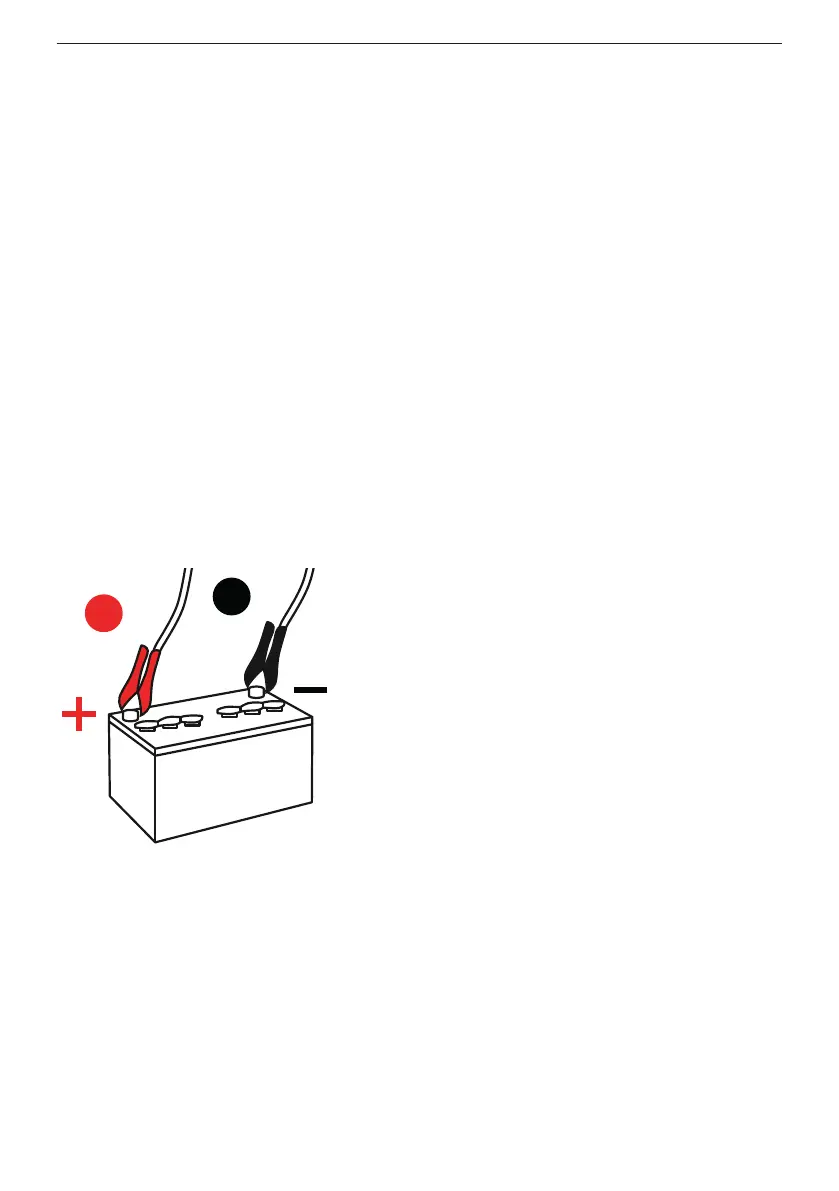

Connecting The Charging Cables
Connect the clamps to the battery in the following order:
1. Connect the positive charging lead (RED)
to the positive terminal post of the battery
(marked +)
2. Connect the negative charging lead (BLACK)
to the negative post of the battery
(marked -) or to the chassis of the car.
3. Now you can connect the charger to the mains
supply and start charging by selecting the
proper charging mode as explained below
1
2
