SCADAmetrics EtherMeter EM-100 User Manual

19
METER HOOKUP FOR NEPTUNE-COMPATIBLE REGISTERS:

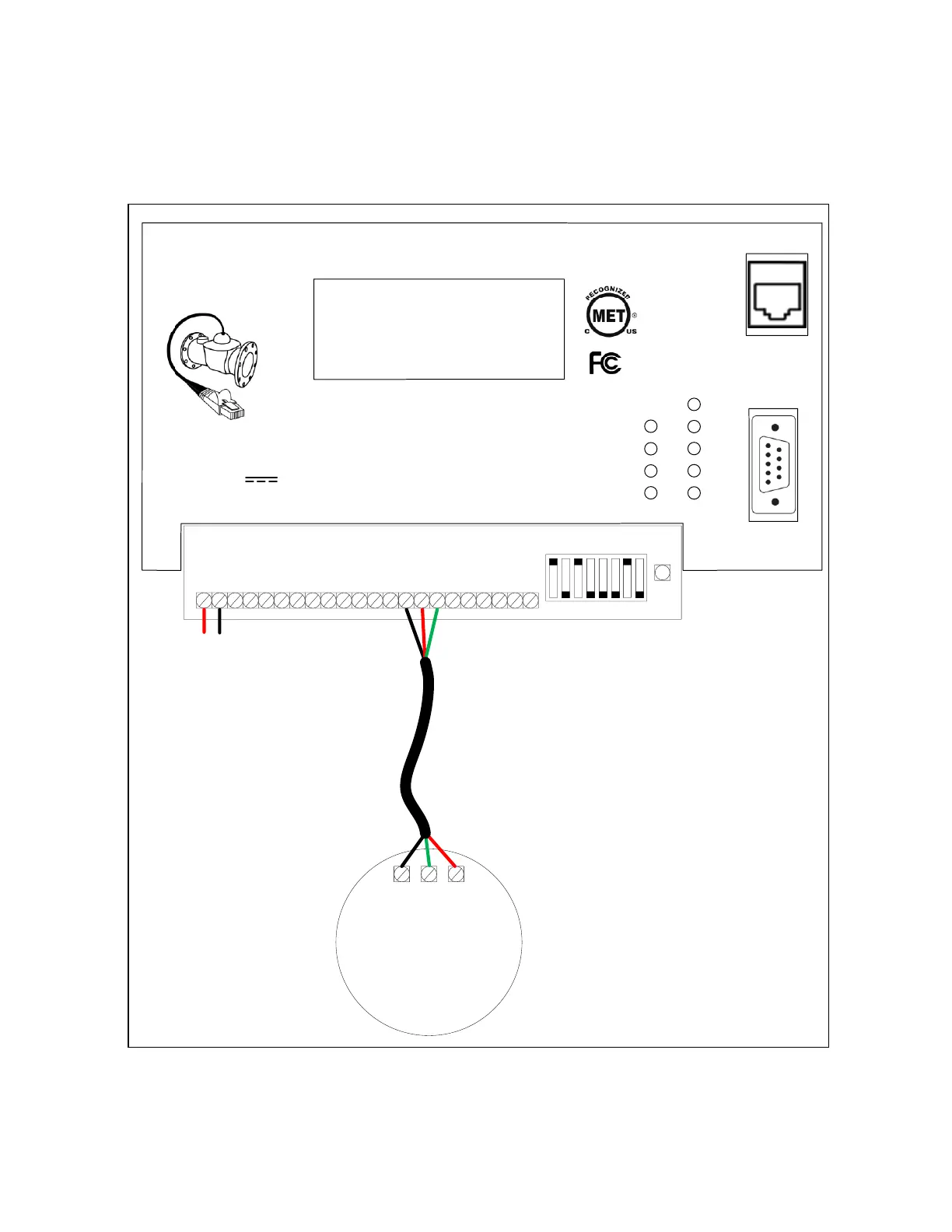

The following diagram demonstrates the hookup of a Neptune-compatible encoder register to Meter
Channel 1 of the EtherMeter. Terminals 14, 15, and 16 are used in this case. Hookup to Meter
Channel 2 will be identical, except terminals 17, 18, and 19 are used.
Model EM-100 EtherMeter®
Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems
By SCADAmetrics®
US Patent No. 8,219,214
ETHERNET
SERIAL
RS.232
UL 62368-1
CSA C22.2
No. 62368-1
E112874
TESTED TO COMPLY
WITH FCC STANDARDS
PWR
TXD
RXD
RTS
DCD
M1.CLK
M1.DATA
M2.DATA
M2.CLK
POWER
1 PWR+
2 PWR-
10-36V
DC
Max: 275mA
Max: 2.5W
METER.1 METER.2
RS.485
14 M1.CLK
15 M1.DATA
16 M1.CMN
17 M2.CLK
18 M2.DATA
19 M2.CMN
20 485.A(-)
21 485.B(+)
22 485.CMN
MAC: 00:1D:C8:##:##:##
LCD DISPLAY
RS-232
-N/C-
BACKL IGHT
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
FACTORY
RESET
PWR+ PWR- AUX3+ AUX3-
LOOP+
AIN1+ AIN1- AIN2+ AIN2-
AUX1+ AUX1- AUX2+ AUX2-
M1-TX
M1-RX
M1-CMN M2-TX M2-RX M2-CMN
485-A 485-B 485-CMN
RS-485
120.TERM
SETUP
RS-485 RS-232
RUN
-N/C- -N/C-
NEPTUNE-COMPATIBLE
ENCODER REGISTER
PRO-CODER
E-CODER
PRO-READ(AUTO-H65N)
B RG
24V
DC
+
24V
DC
–
Figure 7C. Neptune Register Hookup to EtherMeter
