The following diagram is an example of an EtherMeter deployed as a standalone RTU. Note the
use of the auxiliary I/O to provide ON/OFF signaling and analog input monitoring, in addition to
monitoring one (or two) meter registers.

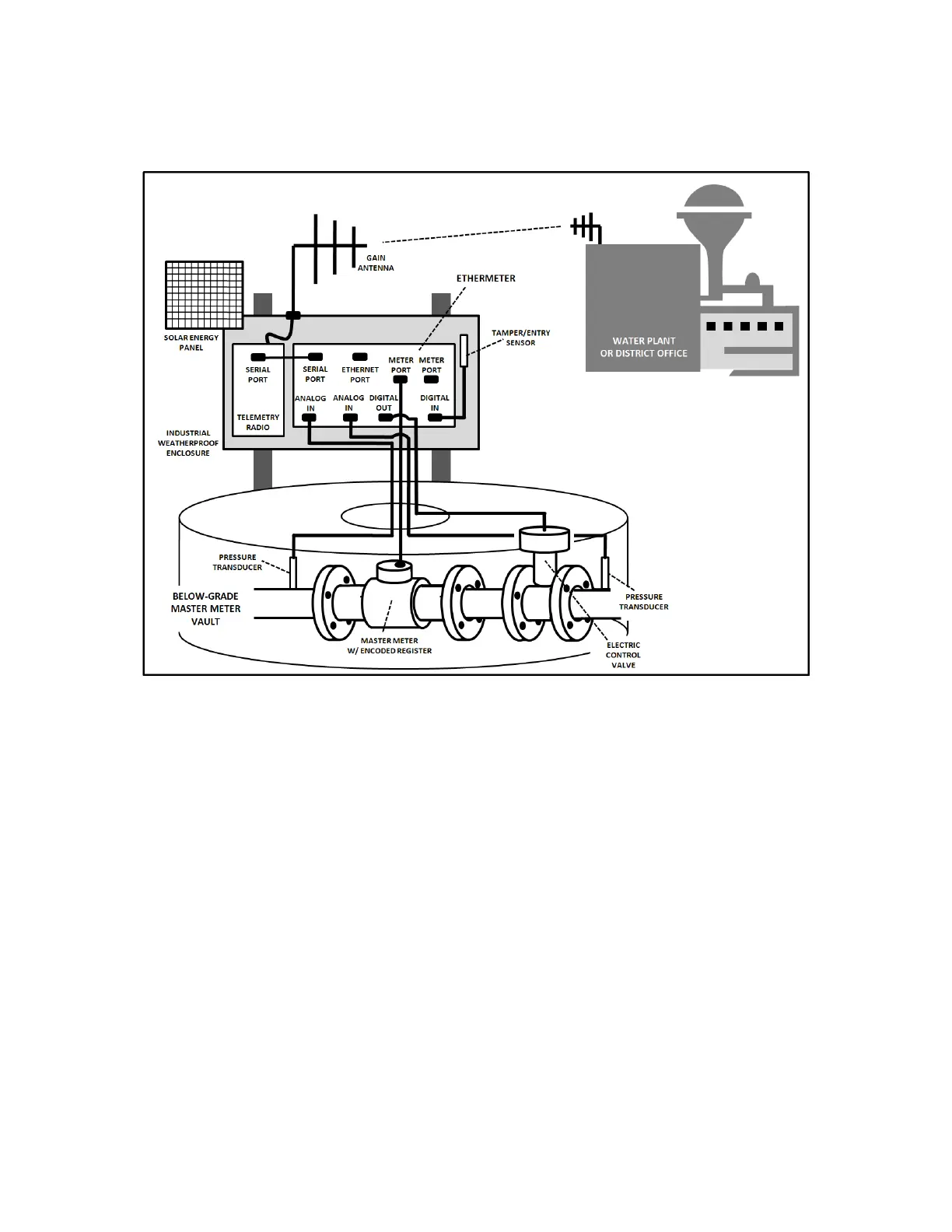

Figure 12C. Example Standalone EtherMeter as RTU or Remote I/O
