4.5 Connect the straight drain outlet (part 12. page 5) to a local drain by means of the 13
mm flexible drain hose supplied in the installation kit. ENSURE THE HOSE IS FULLY
PUSHED ON TO THE STRAIGHT DRAIN OUTLET. This drain pipe has been reinforced to
avoid possible problems caused by kinking of the pipe. IT IS IMPORTANT HOWEVER
TO PROTECT THE DRAIN HOSE FROM FROST & EXCESSIVE HEAT. If the drain hose is
being taken outside ensure a suitable insulation material is used to stop water freezing
in the pipe. (min. temp. 5°c, max. temp. 40°c).
NOTE: The discharge drain hose may installed with a rise of 1m but this
must be over a 5 metre run.
CAUTION: Follow all regulations regarding connection of the flexible drain
hose to the drain. If in doubt check the relevant WRAS guidance notes at
www.WRAS.co.uk
STRAIGHT DRAIN
OUTLET

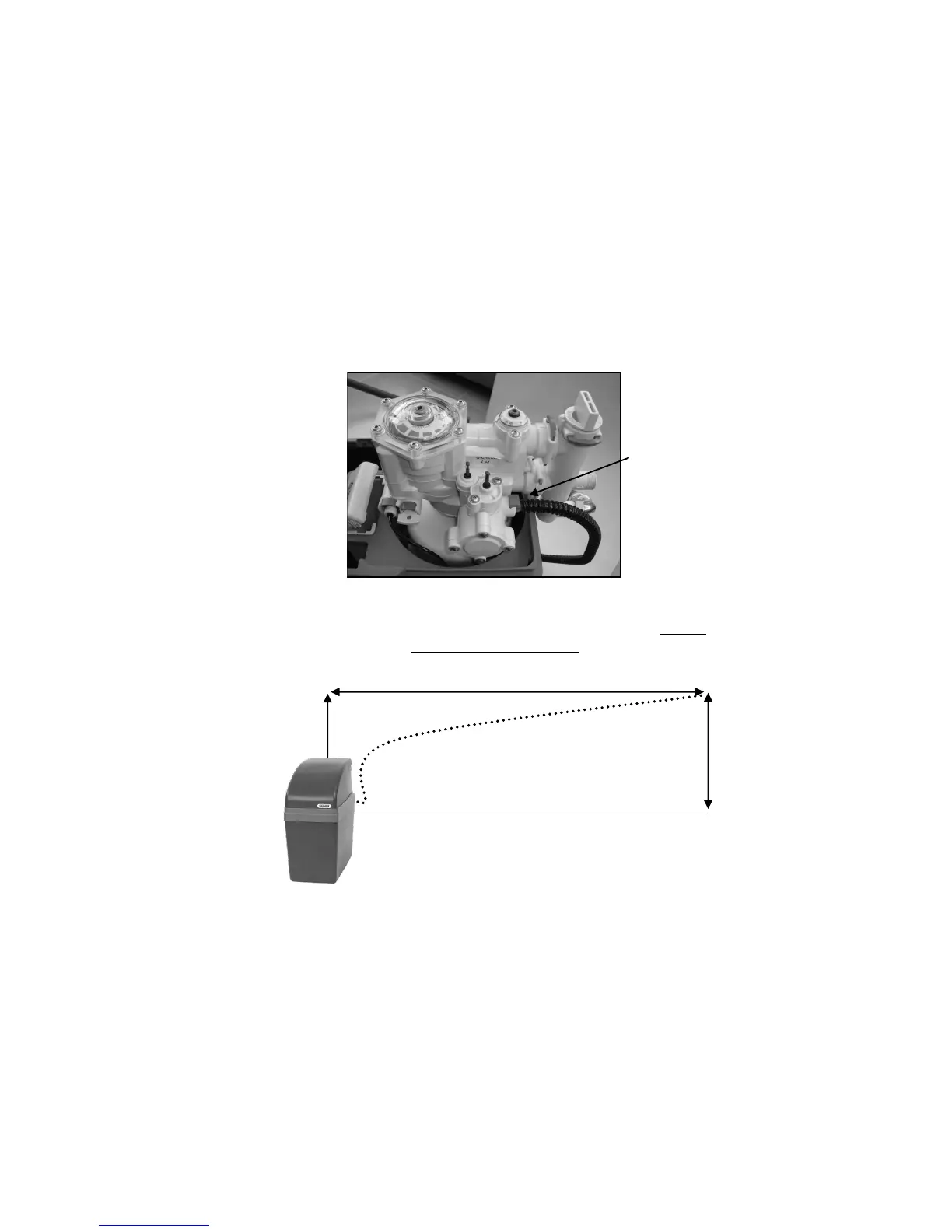

Maximum height and distance of flexible drain hose
5m
1m
