8

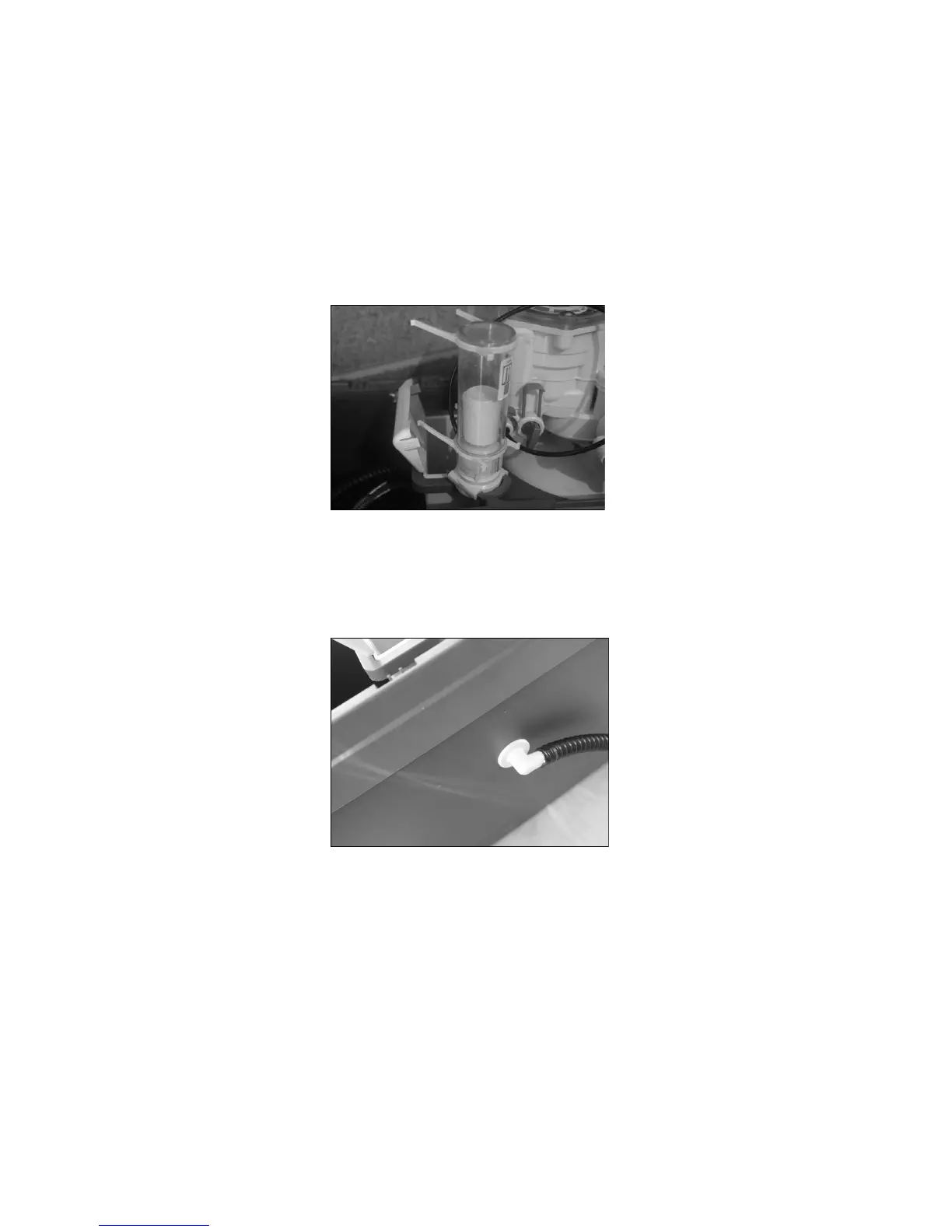

4.6 Connect the brine float (part 5, page 5) to the softener by means of the 4mm flexible
tubing. Insert the tube as far as possible (to stop) into the quick release couplings. Make
sure not to squeeze the tube and avoid kinks.
4.7 Install the supplied overflow fitting. Remove one of the 3 rubber plugs in the salt cabinet
(A, B or C). Insert the overflow fitting and secure it from inside the salt cabinet with the
supplied nut. Connect the pipework so that any overflowing water runs downhill to
drain or through an outside wall.
