Accessories

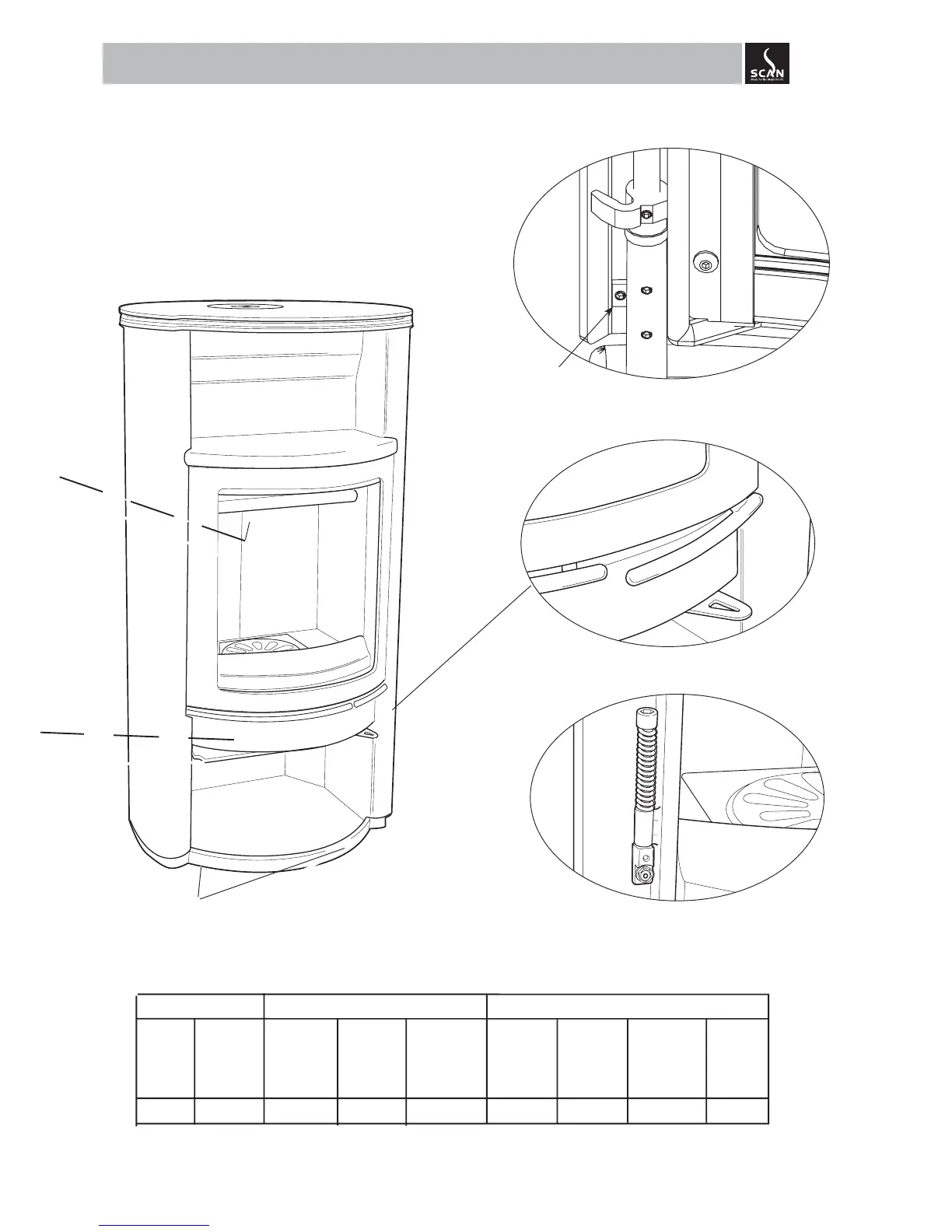

For this model you can have the following accessories:
Handle
The handle is elegantly integrated on the moulding
below the door. Pull out the handle to open.
Adjustment screws
The stove has two adjustment screws on
the bottom that can be used for levelling
the stove.
Self-closing door (BA 1)
The door is prepared with a self-closing function at
the factory. If you tighten the spring with the hexagon
spanner, the door will close automatically when you
let go of it.
• Lateral covering in soapstone
• Soapstone-top plate
• Soapstone for the bottom
• Door in front of the wood compart-
ment
• Baking-compartment door
• Shaped floor plate (steel or glass)
• Glazed baking tile
• Connection piece
for fresh-air intake
Adjustment of the handle
Adjust the handle to the moulding by means
of the adjustment screw.
SCAN 40
Data for calculation of the chimney
Stove
model
SCAN
Connecting
adaptor
mm
1
Density of
flue gas
flow
g/s
2
Flue gas
tempera-
ture
o
C
3
Minimum
draft
Pa
4
Density of
flue gas
flow
g/s
5
Flue gas
temperature
o
C
6
Minimum
draft
Pa
7
0,8
Minimum
draft
Pa
40
150 - - - 6 270 14 11
With closed doorsWith open doors
Column 2 and 5 show the flue gas temperature in the connecting adaptor
Column 3 and 6 show the lowest/minimum draft in Pa by rated value
Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value
The stove can be prepared for an external air supply where fresh
air is let directly into the combustion chamber (can also be done
subsequently by the authorized dealer).
