16 ASSEMBLY
Preparing the stove for rear outlet

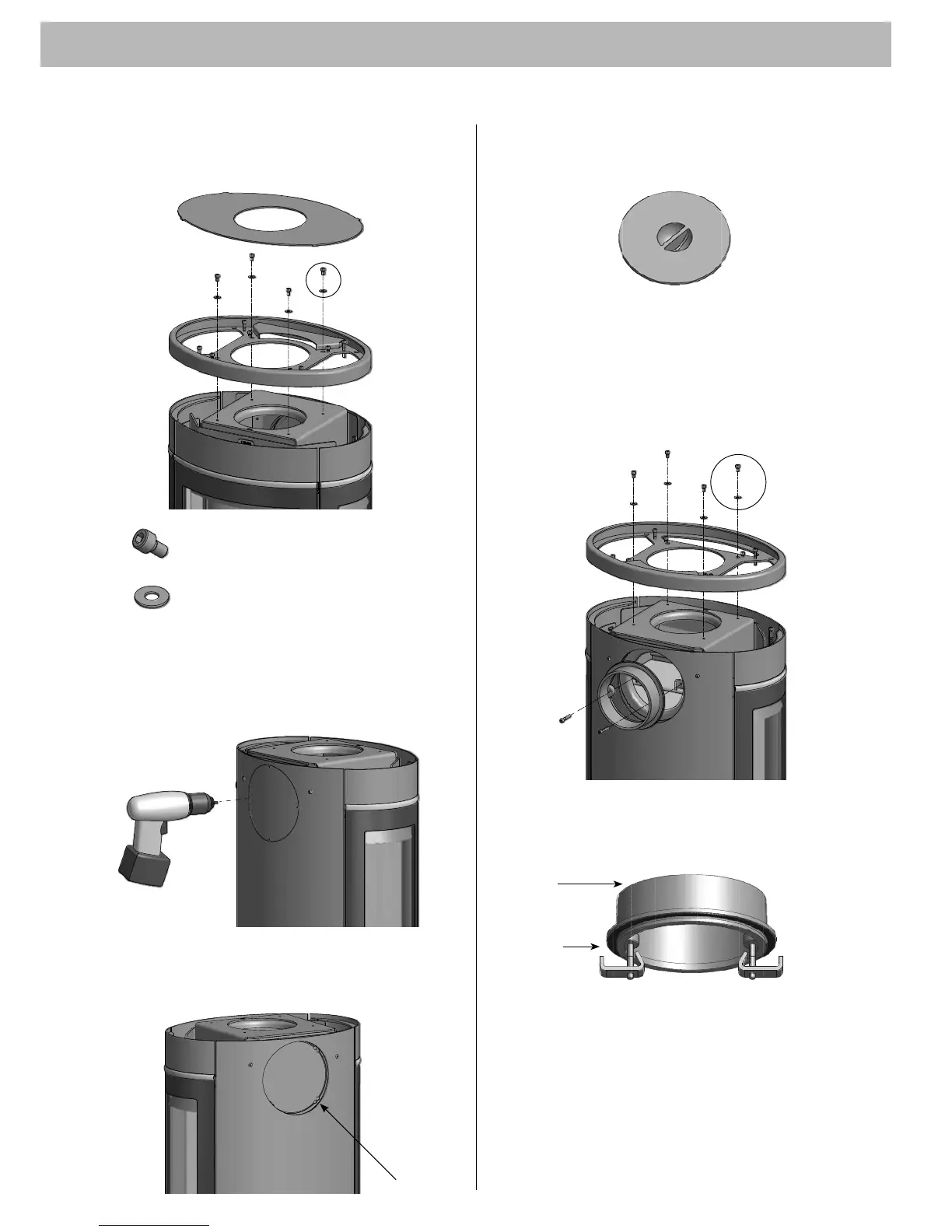

Remove the top plate and the frame for the top plate. The Allen
screws and discs are to be reused, when the stove is assembled again.
To attach the flue pipe, remove the cover plate on the rear plate
and heat shield as follows:
Drill out the four holes in the cover plates with a Ø8 bit and
remove the plates.
4 allen screws M6x10
C
C
Loosen the cast iron cooking plate from the inside and remove.
This is to be used later as a seal and cover at the top of the smoke
outlet.
Fit the separate connecting piece in place from the outside and fix in
place using the bracket and seal supplied in the service pack. Fit the
frame for the top plate.
C
Connecting
piece
Seal for con-
necting piece
Use pliers to cut the anchor points on the heat shield and
remove the shield.
Anchor points
4 discs Ø 6.5 / Ø16 x 1.1
