Scanlab hurrySCAN 10 - Page 21

hurrySCAN
®
10, digital, 1064 nm, f = 254 mm
Rev. 2.6 e
4 Installation
21
innovators for industry
8

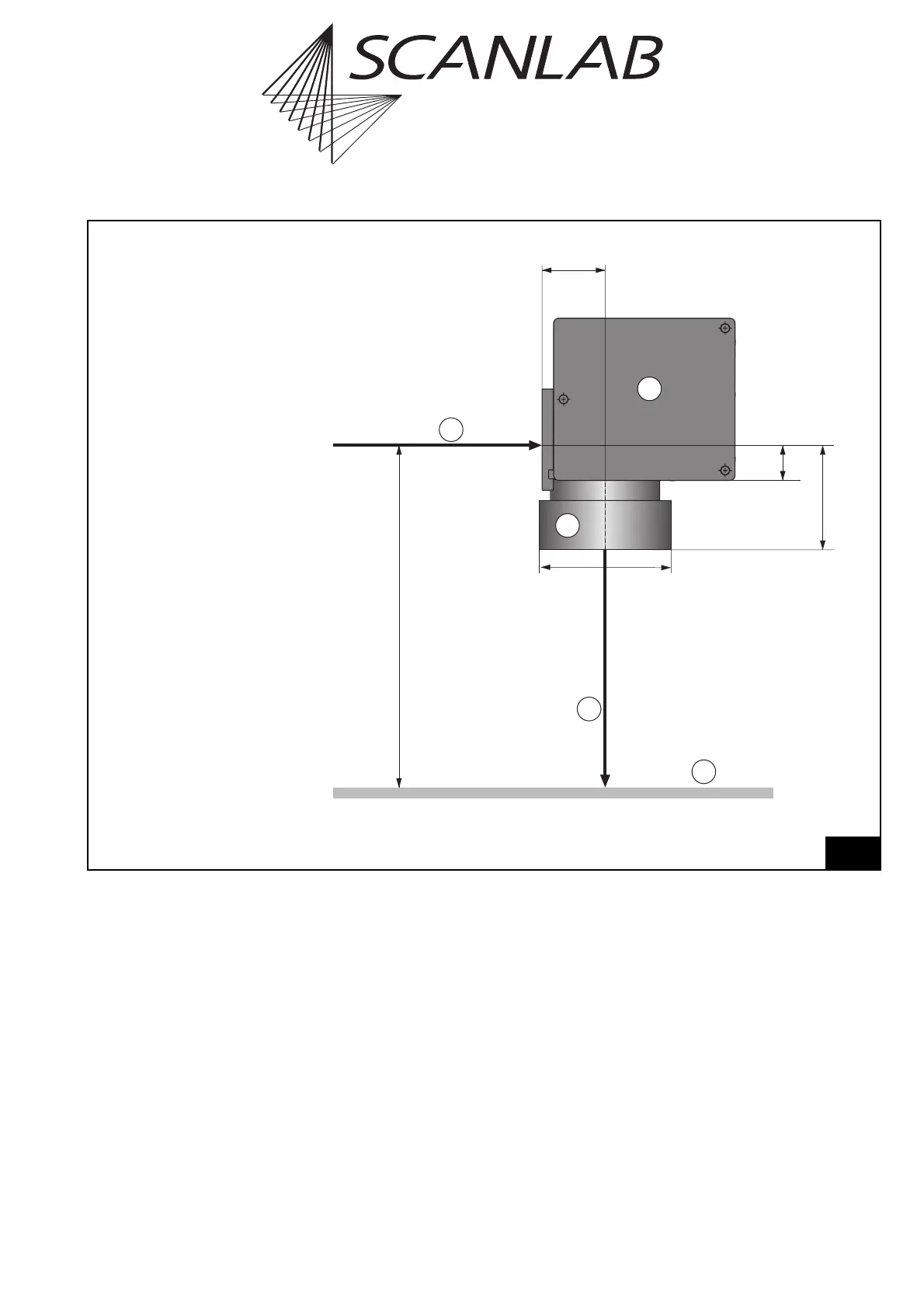

Working Distance A, distances B-E (see chapter 4.4) and dimensions (hurrySCAN
®
10 with objective SCANLAB #100832)
ØD
C
A
B
E
3
4
2
5
1
Legend
1 Beam entrance
2 Scan head
3 Objective (not shown true-to-
scale)
4Emerging beam
5Image field
Note: drawing not true-to-scale
Dimensions
A = 390 mm
B= 32mm
C= 94mm
D = 120 mm
E = 57.15 mm
