hurrySCAN
®
10, digital, 1064 nm, f = 254 mm
Rev. 2.6 e
4 Installation
20
innovators for industry
7
Mounting bracket with holes for beam-in, alignment pins and mounting screws
M6
34.9334.92
57.15 38.1
42.8
Ø6
H7
Ø20
Ø6
H7
M6
91.6
114
40.8
Bottom view and beam displacement
57.15
Beam in
12.56

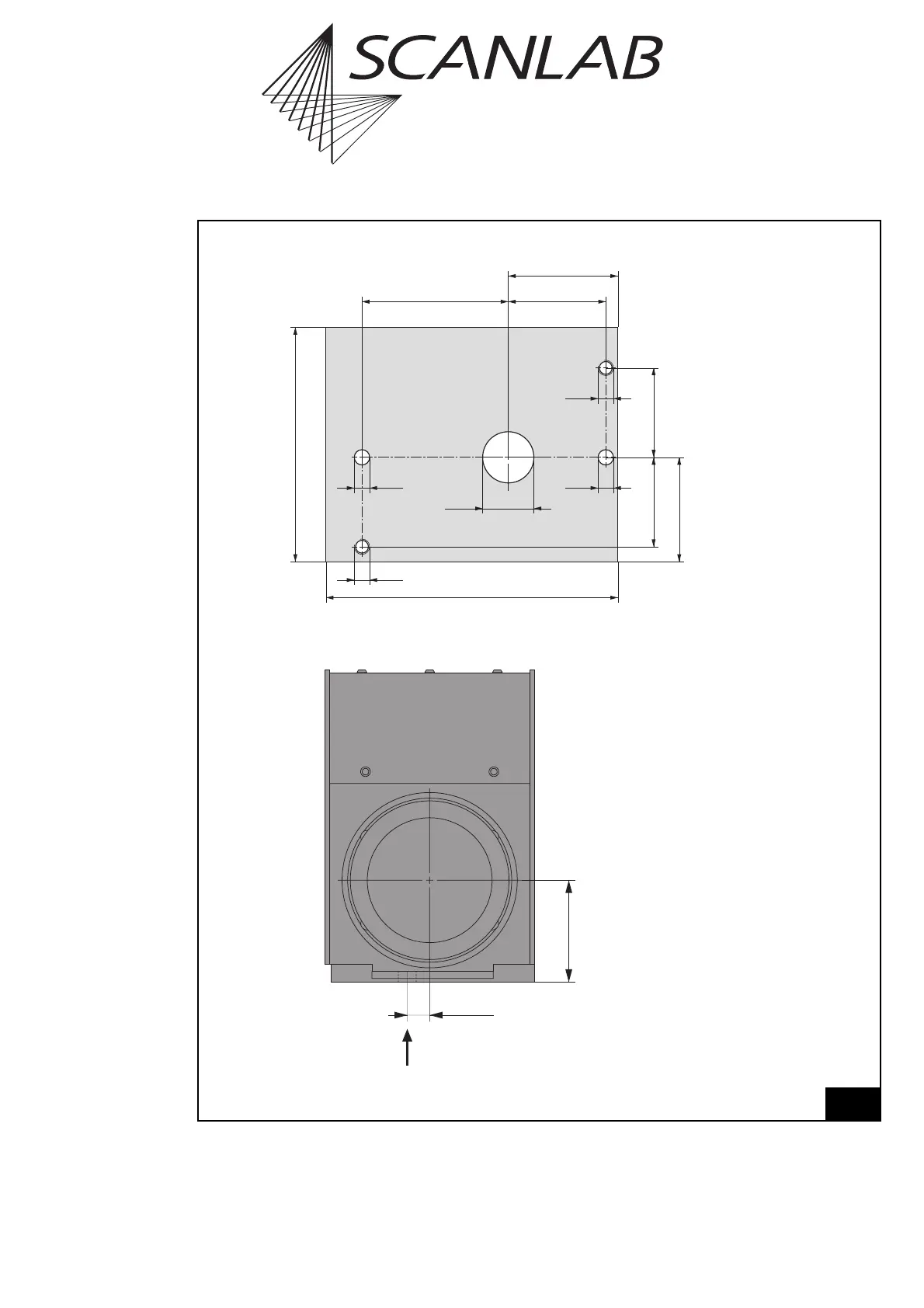

Scan head mounting bracket and bottom view (all dimensions in mm)
