Scantool 16A - Reparationsdele

Reparationsdele

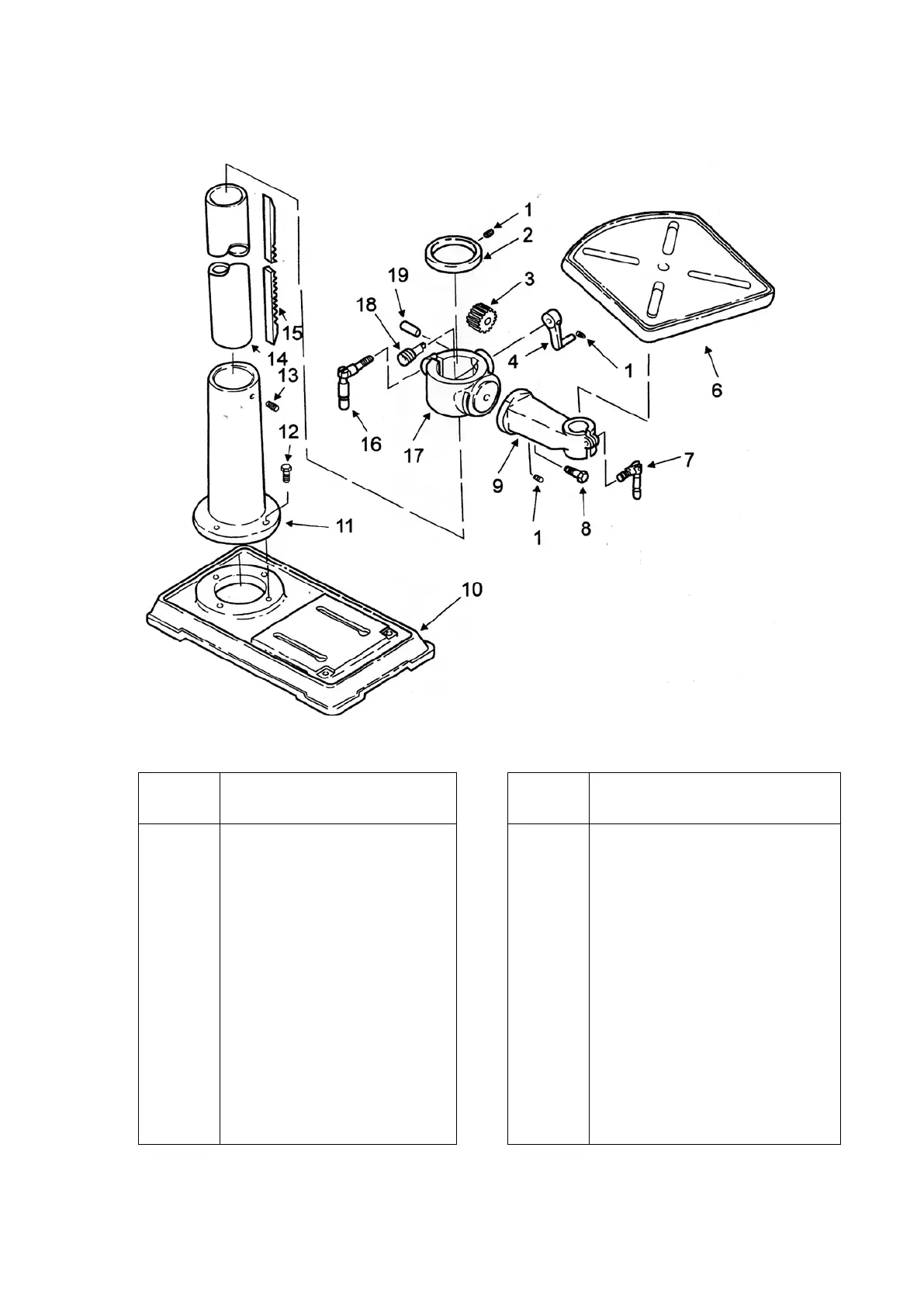

FIGUR 1
Kodenr. Beskrivelse Kodenr. Beskrivelse
1
Screw-Hex Soc.Set
11
Support Column
M6*1.0-10
12
Screw-Hex HD M10*1.5-40
2 Collar-Rack 13 Screw-Hex Soc.Set
3 Gear-Helical M10*1.5-12
4
Crank
14
Tube Column
6
Table
15
Rack
7 Clamp-Table 16 Clamp-Column
8 Screw-Hex HD 17 Support Table w/Indicator
M16*20-35
18
Worm-Elevation
9
Arm-Table w/Scale
19
Pin-Gear
10 Base
.12.
