Repair Parts

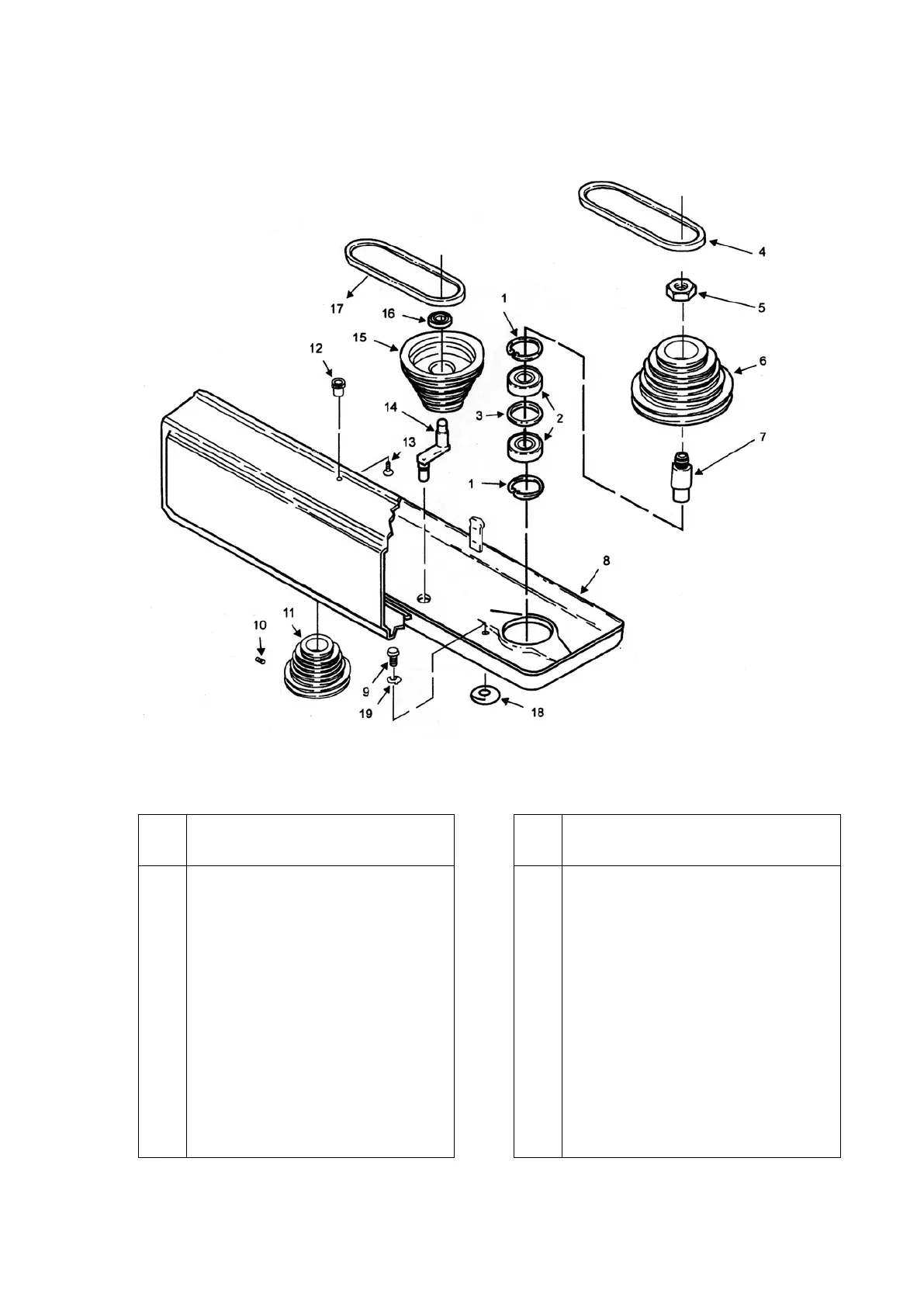

FIGURE3
Key
No.
Description
Key
No.
Description
1 Ring-Retaining 10 Screw-Set M10*1.5-12
2
Bearing-Ball 25mm
11
Pulley-Motor
3
Spacer-Bearing
12
Knob
4
Belt-"V" M24
13
Screw-Pan HD M5*0.8-12
5 Nut-Pulley 14 Pivot-Ldler
6
Pulley-Spindle
15
Pully-Center
7
Insert-Pulley
16
Bearing-Ball 15mm
8
Guard-Pulley w/Labels
18
Washer Foam
9 Screw-RD HD Washer 19 Lock Washer Ext.M6
M6*1.0-16
.14.
