Merlin and Magnum HydrostaticOperating Instructions
MAIN FEATURES
MERLIN
HYDROSTATIC
1
2
3
4
5
6
7
8
MERLIN
HYDROSTATIC
LIN
OSTATIC
3
9
10
11
12
13
14
15
16
17
18

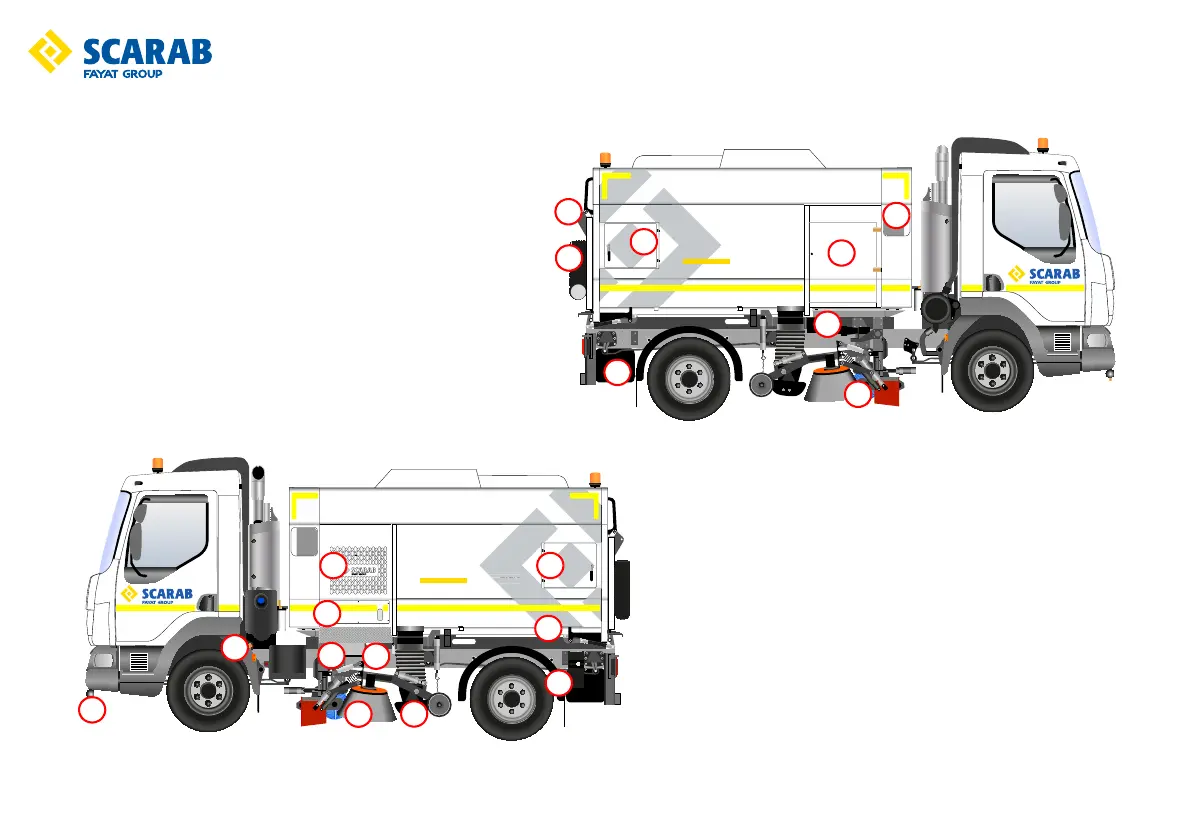

1. Water tank
2. Locker
3. Side loading hatch
4. Door open/close ram
5. Rear wander hose (standard)
6. Fuel tank
(orientation determined on chassis type)
7. Low pressure water pump and valves
8. Central brush assembly
9. Low pressure and/or high pressure spray bar
10. High pressure front spray bar shut-off valve (option)
11. Pneumatic system cabinet
12. Main hydraulic valve block access cover
13. Hydraulic oil cooler location
14. Side brush assembly
15. Suction nozzle assembly
16. Auxiliary hand pump
17. High pressure retractable hose (option)
(orientation determined on chassis type)
18. Rear door locking mechanism
