Part No. SCAZ037886 8.6.00 35 E&OE
Merlin and Magnum HydrostaticOperating Instructions

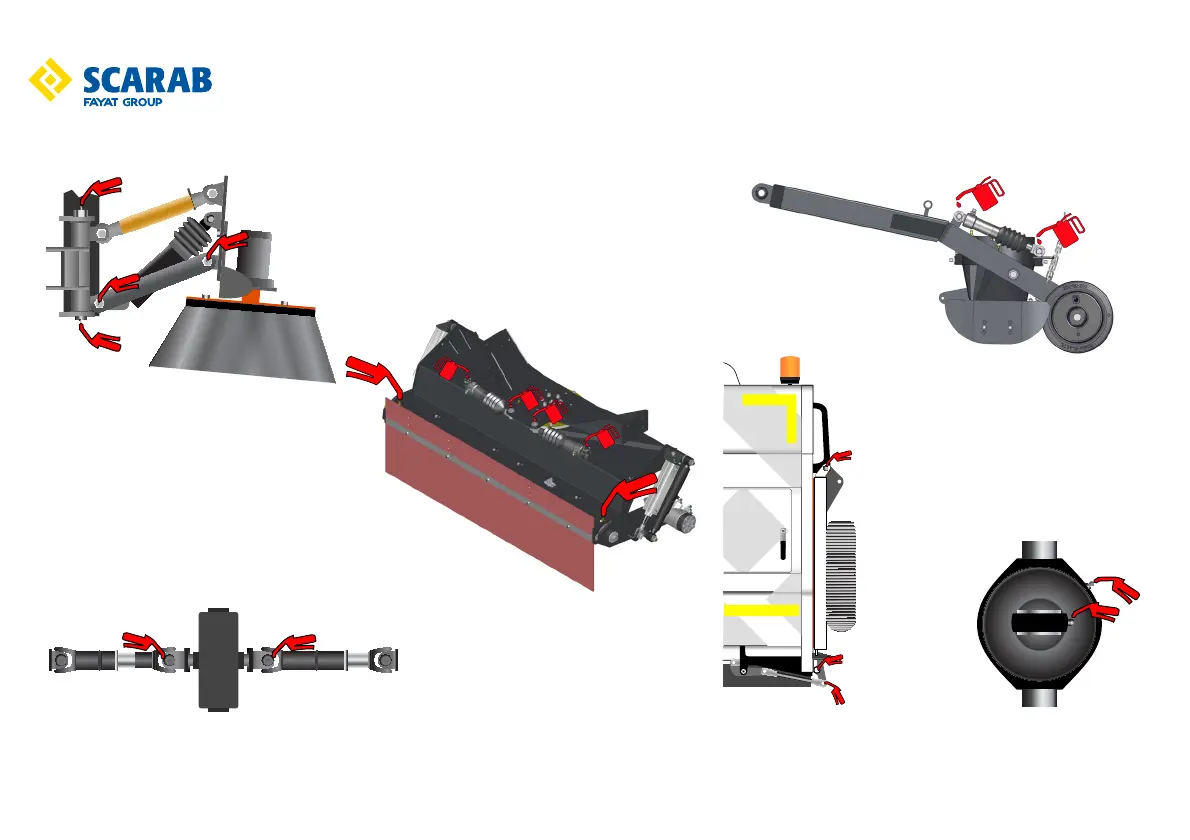

Manual greasing and lubrication
Carry out manual greasing in accordance with the appropriate schedule on Page 30 and by referring to the accompanying diagrams shown here.
Central brush (wide sweep)
Side brush assemblies
Hopper ram
(viewed from below)
Hydrostatic gearbox prop shafts
Hopper body and rear door
Suction nozzle assembly
Door hinge x 3
Locking clamp x 3
Pivot rod x 2
