Charging Set points
Absorption Stage
Float Stage
Flooded Battery
14.6V / 29.2V / 58.4V
13.5V / 27V / 54V
AGM/Gel Battery
14.1V / 28.2V / 56.4V
13.5V / 27V / 54V
Over-charging voltage
15V / 30V / 60V
Over-charging
comeback voltage
14.5V / 29V / 58V
Battery defect voltage
8.5V / 17V / 34V
Battery defect
comeback voltage
9V / 18V / 36V

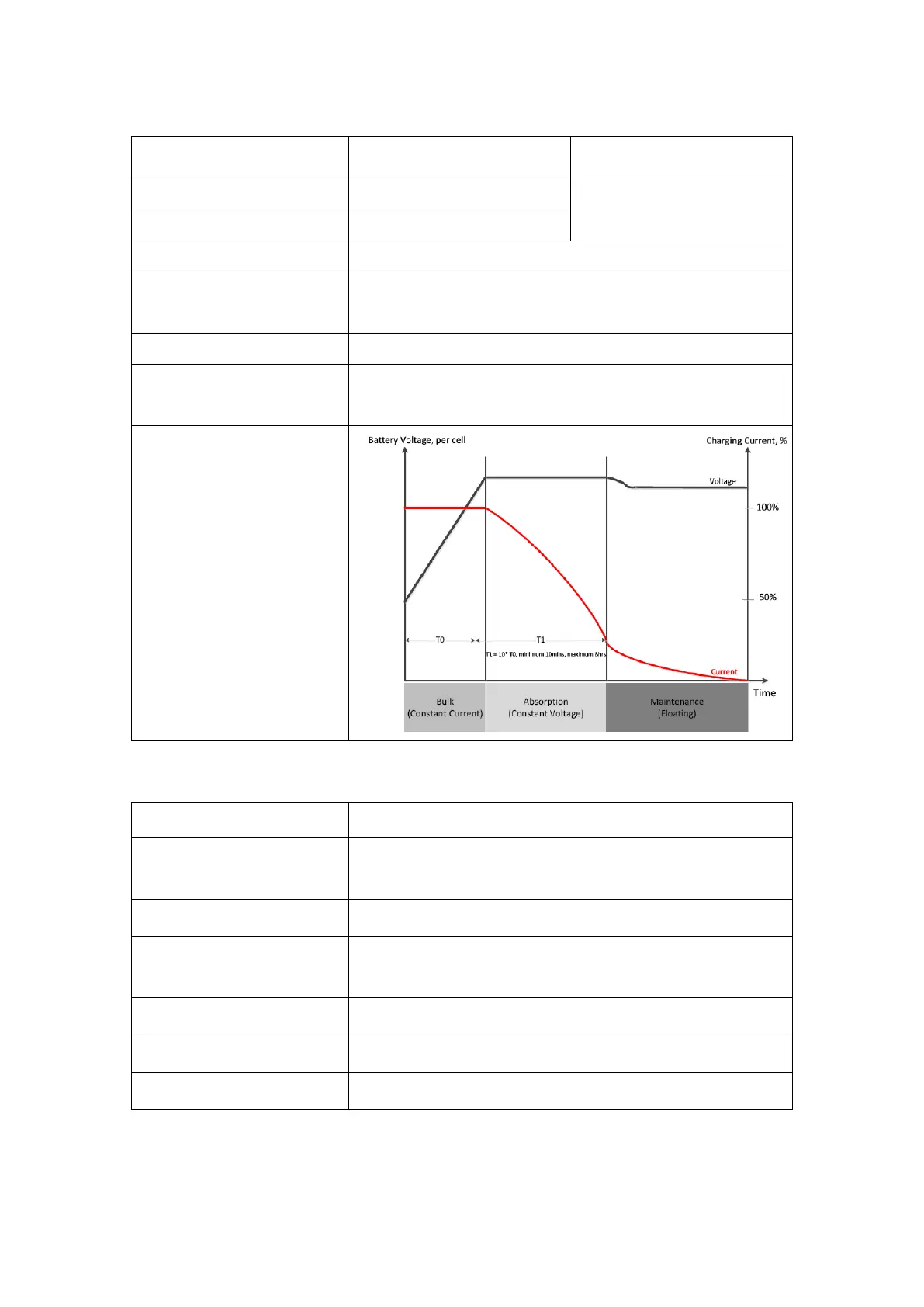

Charging Curve
Table 3 Mechanical and Environment
Charger MODEL
MPPT 3K
Product size (W x H x D,
mm)
315 x 165 x 128
Product weight (Kg)
4.5
Ambient Temperature
Range
0°C to 55°C
Storage Temperature
-40°C to 75°C
Humidity
0%-90% RH(No condensing)
Enclosure
IP31 (indoor & vented)
