6.1 Input | 6.1.1 Coding
6.1 Input
6.1.1 Coding
With DIP switch Input 1 in the on position the co-
ding type can be adjusted. By pressing the Input
button the different coding type can be selected. The
Status LED shows the present status. Switch off the
DIP switch to save the selection.

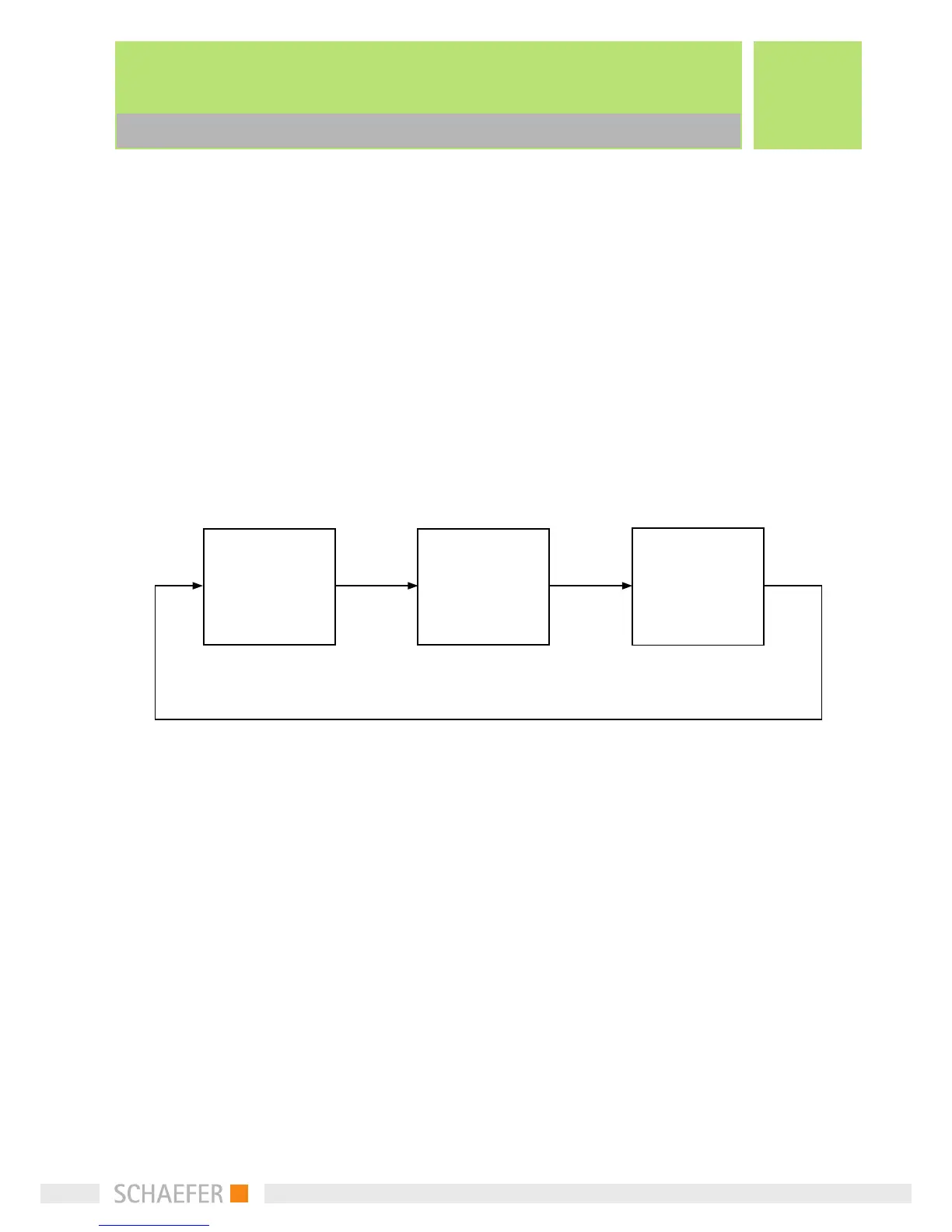

LED: yellow
Binary
LED: yellow
green
1 out of n
(signal per floor)
LED: green
Gray
Button
Button Button
