Visatron VN115/93
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-115-93/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:

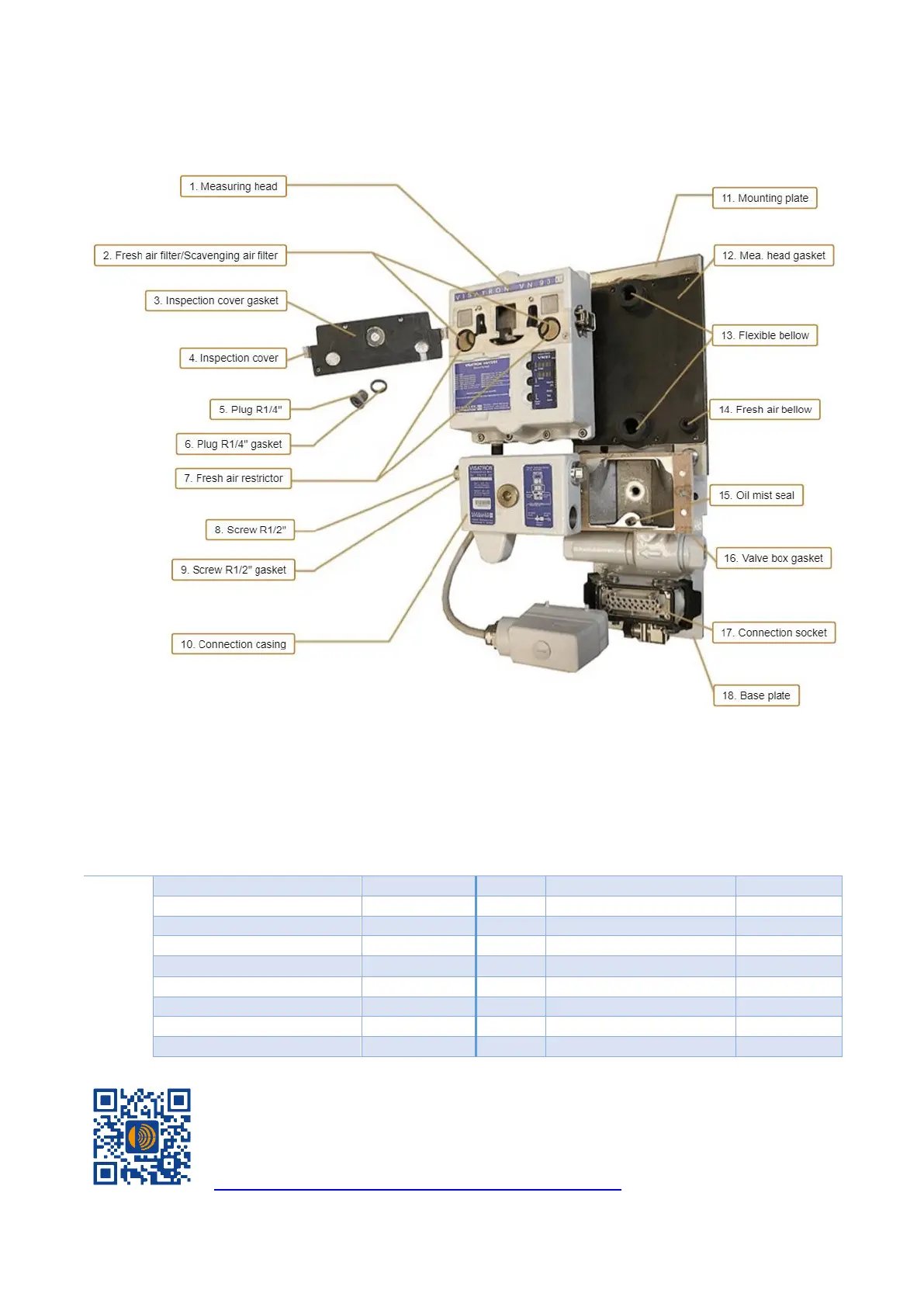

1
Measuring head
11201 | 11201R
10
Connection casing
11232 | 11232R
2
Fresh air filter/Scavenging air filter
10042 | 365197
11
Mounting plate
10991
3
Inspection cover gasket
11180 | 355576
12
Mea. head gasket
10969 | 355321
4
Inspection cover
10798 | 270412
13
Flexible bellow
10023 | 365193
5
Plug R1/4”
10083
14
Fresh air bellow
10990
6
Plug R1/4” gasket
10082
15
Oil mist seal
10206 | 360136
7
Fresh air restrictor
10992
16
Valve box gasket
10405 | 330721
8
Screw R1/2”
10208
17
Connection socket
10905
9
Screw R1/2” gasket
10209 | 365280
18
Base plate
10904 | 10904R
