Schaller Automation VN 215/93 User Manual

34

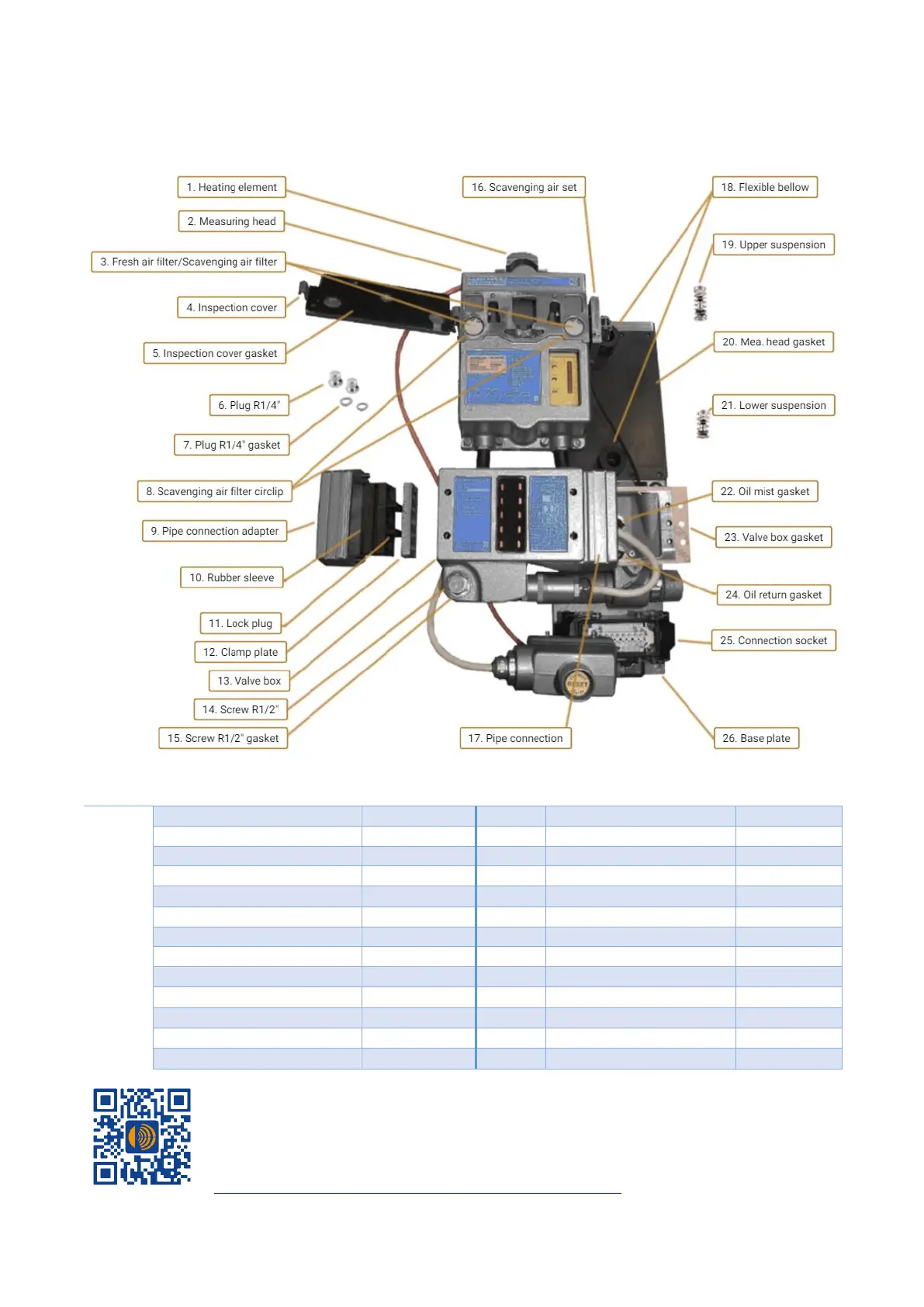

Visatron VN215/87 EMC
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-215-87/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:
1
Heating element
10671 | 270765
14
Screw R1/2”
10208
2
Measuring head
10802 | 10802R
15
Screw R1/2” gasket
10209 | 365280
3
Fresh air filter/Scavenging air filter
10042 | 365197
16
Scavenging air set
10798
4
Inspection cover
10798 | 270412
17
Pipe connection
10408
5
Inspection cover gasket
10166 | 355336
18
Flexible bellow
10023 | 365193
6
Plug R1/4”
10083
19
Upper suspension
10018 | 200211
7
Plug R1/4” gasket
10082
20
Mea. head gasket
10022 | 330482
8
Scavenging air filter circlip
10041 | 365198
21
Lower suspension
10019 | 200212
9
Pipe connection adapter
10430
22
Oil mist gasket
10407
10
Rubber sleeve
10411
23
Valve box gasket
10405 | 330721
11
Lock plug
10412
24
Oil return gasket
10406
12
Clamp plate
10409
25
Connection socket
10033
13
Valve box
10402 | 10402R
26
Base plate
