Visatron VN116/93
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-116-93/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:

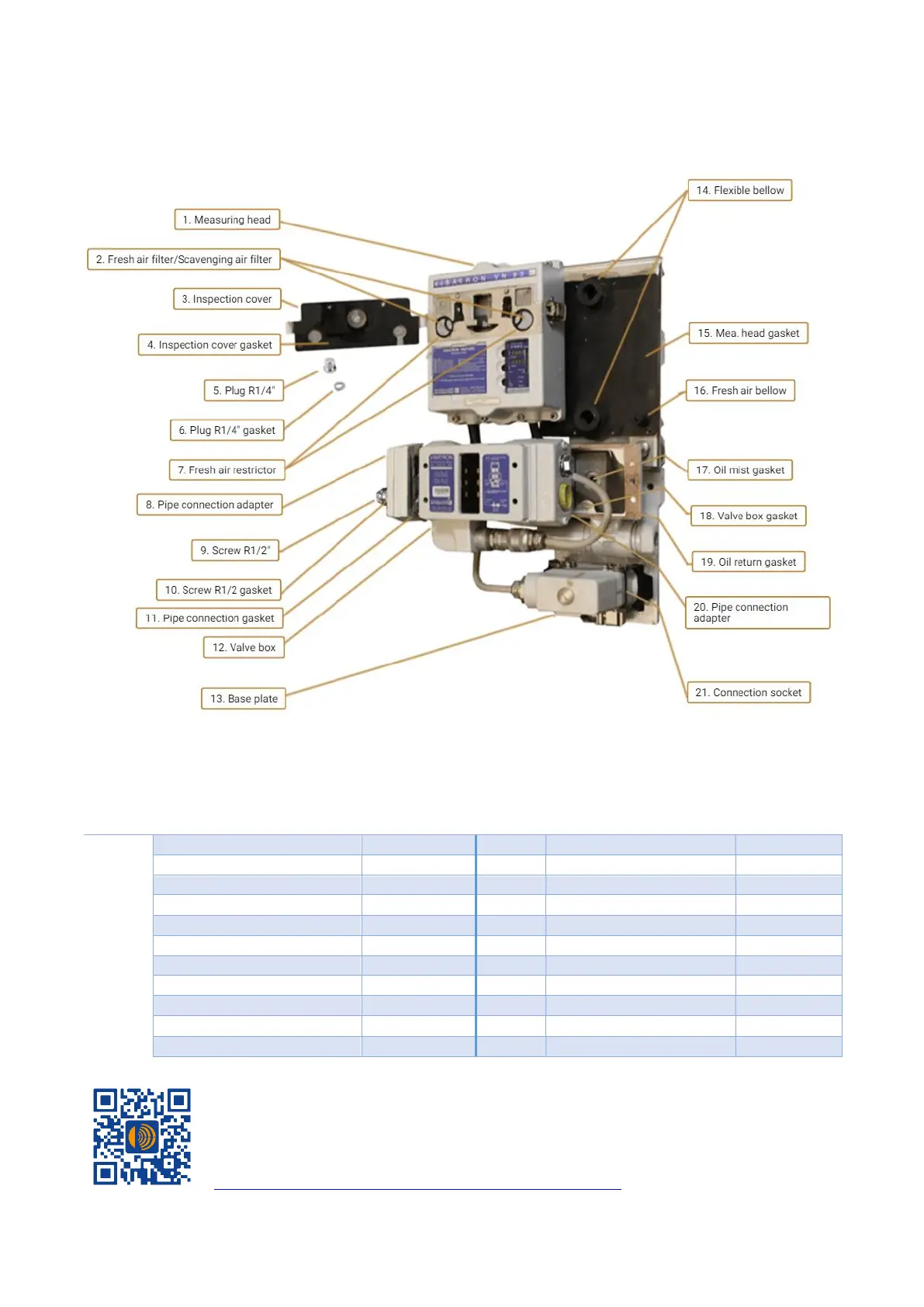

1
Measuring head
11401 | 11401R
12
Valve box
2
Fresh air filter/Scavenging air filter
10042 | 365197
13
Base plate
10904 | 10904R
3
Inspection cover
10798
14
Flexible bellow
10023 | 365193
4
Inspection cover gasket
11180
15
Mea. head gasket
10696
5
Plug R1/4”
10083
16
Fresh air bellow
10975
6
Plug R1/4” gasket
10082
17
Oil mist gasket
10407
7
Fresh air restrictor
10992
18
Valve box gasket
10405 | 330721
8
Pipe connection adapter
19
Oil return gasket
10406
9
Screw R1/2”
10208
20
Pipe connection adapter
10
Screw R1/2” gasket
10209 | 265280
21
Connection socket
10033
11
Pipe connection gasket
10313
