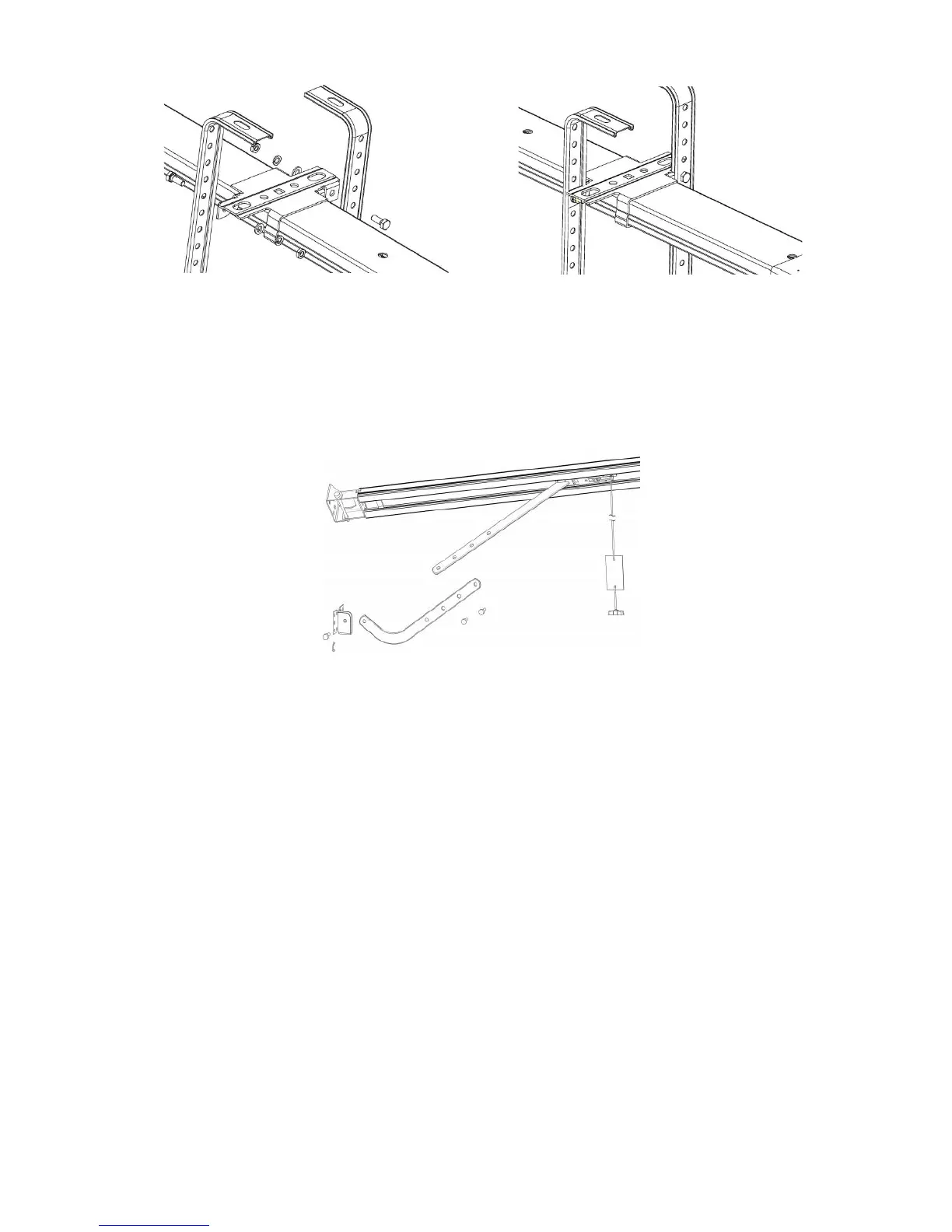

STEP 6 (Figure 14)
Slide the shuttle towards the closed garage door. Attach the straight arm and bent arm pieces. Position and
bolt the arms to the top edge of the door using the bolts supplied.
STEP 7
Lift the garage door until the shuttle locks into the drive chain/belt. The operator is now ready to be
programmed.
Figure 14
Figure 12
Figure 13
STEP 5 (Figure 12 and 13)
With the boom rail securely positioned on your ladder, attach the Easy-
Click bracket to the ceiling mounted extension pieces with the nuts,
washers, and bolts provided.
